Optics

Capabilities

In the following table the capabilities of each optics is shown.

	Lens	Traversal	Fold
Get	Single	Many	Many
Set/Modify	Single	Many	Nope
Traverse	Single	Many	Nope

Operators

There is a general patterns applied to most operators in the Optics library. This means that the name of an operator can usually be guessed.

Symbol	Explenation	Example
`^`	Denotes that the action views/gets something	`^.`
`.`	Denotes the absence of any other modifiers	`^.`
`%`	Denotes an actinon which modifies using a function	`%~`
`~`	Denotes that this action updates/sets something	`%~`, `.~`
`<`	A prefix for update/set actions, which will return the altered value as well as the whole structure	`<+~`
`<<`	A prefix for update/set action, which will return the old value	`<<+~`

Lenses

A lens abstracts the getter and setter into one value. A lens can focus a single type and always returns a type (so a lens can't return a from Either a b, because the type could also be b).

Their are two types of lenses:

Simple lens: Lens' s a, where s is the structure and a is the focus type. This lens always returns the same type as it gets and it can be created with makeLenses
Polymorphic Lens: Lens s t a b, where s is the input structure, t the output structure, a the input focus and b the output focus. This type of lenses can change the types of the structure and focus.

data Settings a = Settings {
        _path :: String,
        _object :: a
    } derving (Show)

path :: Lens' Settings a
path = lens getter setter
    where
        getter :: Settings a -> String
        getter = _path
        setter :: Settings a -> String -> Settings a
        setter oldSettings newPath = oldSettings{ _path = newPath }

object :: Lens (Settings a) -> (Settings b) -> a -> b
object = lens getter setter
    where
        getter :: Settings a -> a
        getter = _object
        setter :: Settings a -> b -> Settings b
        setter oldSettings newObj = oldSettings{ _object = newObj }

Lens Laws

You get back what you set (set-get) When you set something, you always get the same thing back

view myLens (set myLens newValue structure) == newValue

Setting back what you got doesn't do anything (get-set) When you set what view returned to you, than nothing changes

set myLens (view myLens structure) structure == structure

Setting twice is the same as setting once (set-set) Setting multiple times the same value does always do the same thing

set myLens diffrentValue (set myLens diffrentValue structure) == set myLens diffrentValue structure

Virtual Fields

Lenses can be used to provide an abstraction layer above the actual data structure. Virtual Fields can be created by writing custom lens getters and setter. The getter and setter can apply a function to convert the field.

This can also be done later, when the underlying data structure changes but the public API shouldn't change.

Lenses & Operators

The following operators can be used with lenses:

view :: Lens' s a -> s -> a Returns the value which the given lens focuses on
set :: Lens s t a b -> b -> s -> t or set :: Lens' s a -> a -> s -> s Sets the value of the focus of a lens
over :: Lens s t a b -> (a -> b) -> s -> t or over :: Lens' s a -> (a -> a) -> s -> s Fetches the focused value, applies the given function and then uses set t set the focused value

There are infix operator which are synonyms to the operators above:

Operator	Action	Type
`^.`	flipped view	`s -> Lens' s a -> a`
`.~`	set	`Lens s t a b -> b -> s -> t`
`%~`	over	`Lens s t a b -> (a -> b) -> s -> t`

Some common lenses are :

_1 :: Lens (a, other) (b, other) a b Sets the focus on the first element of a tuple
_2 :: Lens (other, a) (other, b) a b Sets the focus on the second element of a tuple

data Payload = Payload
  { _weightKilos :: Int,
    _cargo :: String
  }
  deriving (Show)

makeLenses ''Payload

data Ship = Ship {_payload :: Payload}
  deriving (Show)

makeLenses ''Ship

serenity :: Ship
serenity = Ship (Payload 5000 "Livestock")

-- get
>>> view payload . cargo serenity
-- > "Livestock"
>>> serenity ^. payload . cargo
-- > "Livestock"

-- set
>>> set (payload . cargo) "Medicine" serenity
>>> serenity & payload . cargo .~ "Medicine"
>>> serenity
        & payload . cargo .~ "Chocolate"
        & payload . weightKilos .~ 2310

-- over
>>> serenity
        & payload . weightKilos .% subtract 1000
        & payload . cargo .~ "Chocolate"

Composing Lenses

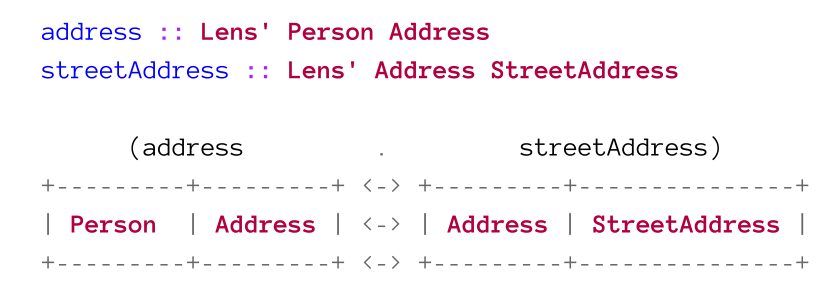

Lenses compose very easily. Imagin each lens being a domino which can be fitted together if the types match. From the expression below, we'll get address :: Lens' Person StreetAddress. The Address type is "hidden" in the composition.

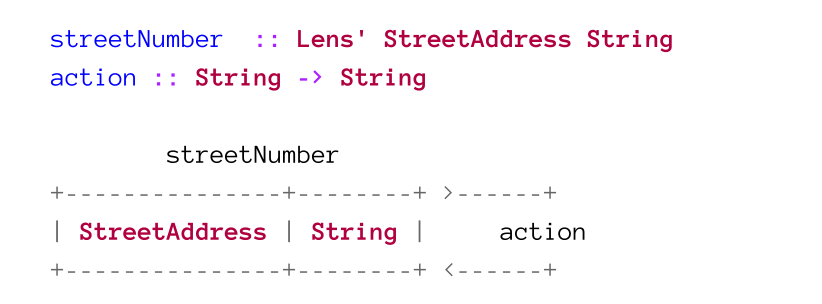

At the the right end of a domino line, we can use an action to do something, like modifying the focused value.

Here an actual Example:

wave :: Wool -> Sweater
weave Wool = Sweater

gameState :: (Player, Item Wool)
gameState = (Player Item Wool 5)

-- crafts a sweater
gameState' :: (Player, Item Sweater)
gameState' = over (_2 . material ) weave gameState

Folds

A fold is like a query and can:

focus on multiple things
can only get, not set data

A fold has the data type Fold s a, where the s is the structure on which the query runs and a is the return value. A fold returns zero or more from a

A fold, like a lens, doesn't contain data. It is an "operation" which knows how to extract zero or more elements from an type.

We can create a custom Fold with the function folding :: Foldable f => (s -> f a) -> Fold s a, which takes as an argument a function which transforms the type s into a folding type a.

data ShipCrew = ShipCrew
    { _captain :: String,
    , _conscripts :: [String]
    } deriving (Show)
makeLenses ''ShipCrew

collectCrewMembers :: ShipCrew -> [String]
collectCrewMembers crew = (_captain crew) : _conscripts crew

crewMembers :: Fold ShipCrew String
crewMembers = folding collectCrewMembers

Operators

folded : Foldable f => Fold (f a) With folded an instance of Foldable like a list can be converted into a Fold.

A lens can be used to focus in on an element of a fold. This works because every lens has a getter to focus on one element exactly. This fits into the definition of a fold which needs to focus on zero or more elements.

data CartItem =
    CartItem { _name :: String
             , _count :: Int}
makeLenses ''CarItem

cart :: [CartItem]
cart = [CartItem "Black Shirt" 3, CarItem "Water Bottle" 2]

-- get a list of all items
cart ^.. folded -- will return [CartItem "Black Shirt" 3, CarItem "Water Bottle" 2]
toListOf folded cart -- the same as above

cart ^.. folded . name -- ["Black Shirt", "Water Bottle"]
toListOf (folded . name) cart -- the same as above

to :: (s -> a) -> Fold s a Creates a fold which maps from the type s to the folded type a. This function maps 1-to-1. Because of this, it couldn't be used to extract values from Maybe. If a 1-to-many relationship is needed, folding can be used

newtype Name = Name { getName :: String } deriving (Show)
Name "Hi" ^. to getName -- will return "Hi"
Name "hello world" ^. to getName . to (fmap toUpper) -- will return "HELLO WORLD"
(ShipCrew "Captain Tom" ["Franz", "Max"]) ^.. crewMembers . to (fmap toUpper) -- will return ["CAPTAIN TOM", "FRANZ", "MAX"]

backwards :: Fold s a -> Fold s a Reverses the elements of a fold

[1, 2, 3] ^.. backwards folded -- will return [3, 2, 1]
[(1, 2), (3, 4)] ^.. backwards (folded . both) -- will return [4, 3, 2, 1]
[(1, 2), (3, 4)] ^.. backwards folded . both -- will return [3, 4, 1, 2]

only :: Eq a => a -> Prism' a () A helper fold operator which can simplify to only :: Eq a => a -> Fold a (). It return () only if the input is equal to the given a

1 ^? only 1 -- will return Just ()
2 ^? only 1 -

Actions

toListOf :: Fold s a -> s -> [a]/(^..) :: s -> Fold s a -> [a] To use a fold on data the function toListOf can be used. This will take a Fold and a Foldable structure and extracts [a] out of it. A synonym is (^..) :: s -> Fold s a -> [a]
elemOf :: Eq a => Fold s a -> a -> s -> Bool Checks if the given a is in the Fold

elemOf folded 3 [1..4] -- will return True
elemOf folded 99 [1..4] -- will return False

anyOf :: Fold s a -> (a -> Bool) -> s -> Bool Checks if the predicates returns true for at least one element

anyOf folded even [1..4] -- will return True
anyOf folded (>100) [1..4] -- will return False

allOf :: Fold s a -> (a -> Bool) -> s -> Bool Check if the predicates returns true for all elements

allOf folded even [1..4] -- will return False
allOf folded (<10) [1..4] -- will return True

findOf :: Fold s a -> (a -> Bool) -> s -> Maybe a Tries to find an element for which the predicate returns true

findOf folded even [1..4] -- will return Just 2
findOf folded (>10) [1..4] -- will return Nothing

has :: Fold s a -> s -> Bool Checks if there is at least one element

has folded [] -- will return False
has folded [1..4] -- will return True

hasn't :: Fold s a -> s -> Bool Checks if there are no elements

hasn't folded [] -- will return True
hasn't folded [1..4] -- will return False

lengthOf :: Fold s a -> s -> Int Returns how many elements there are

lengthOf folded [1, 2, 3, 4] -- will return 4

sumOf :: Num n => Fold s n -> s -> n / productOf :: Num n => Fold s n -> s -> n Calculates the sum/product of all elements

sumfOf folded [1..4] -- will return 10
productOf folded [1..4] -- will return 24

firstOf :: Fold s a -> s -> Maybe a / preview :: Fold s a -> s -> Maybe a / ( ^?) :: s -> Fold s a -> Maybe a / lastOf :: Fold s a -> s -> Maybe a firstOf, preview and (^?) return the first element; lastOf returns the last element

firstOf folded [] -- will return Nothing
firstOf folded [1..4] -- will return Just 1
preview folded [1..4] -- will return Just 1
[1..4] ^? folded -- will return Just 1
lastOf folded [1..4] -- will return Just 4

minimumOf :: Ord a => Fold s a -> s -> Maybe a / maximumOf :: Ord a => Fold s a -> s -> Maybe a Returns the minimum or maximum of the elements

minimumOf folded [1..4] -- will return Just 1
maximumOf folded [1..4] -- will return Just 4
minimumOf folded [] -- will return Nothing
maximumOf folded [] -- will return Nothing

maximumByOf :: Fold s a -> (a -> a -> Ordering) -> s -> Maybe a / minimumOf :: Fold s a -> (a -> a -> Ordering) -> s -> Maybe a These function return the "largest" or "smallest" element determinted by the function (a -> a -> Ordering)

data Person = Person { _name :: String, _age :: Int} deriving (Show)
maximumByOf (folded) (comparing _age) [Person "Seb" 22, Person "Marie" 33] -- will return Person "Marie" 33
minimumByOf (folded) (comparing _age) [Person "Seb" 22, Person "Marie" 33] -- will return Person "Seb" 22

traverseOf_ :: Functor f => Fold s a -> (a -> f r) -> s -> f () / forOf_ :: Functor f => Fold s a -> s -> (a -> f r) -> f () traverseOf_ and forOf_ are used to execute side effects with elements and are the optic equivalents of traverse_ and for_

data Person = Person {_name :: String, _age :: Int} deriving (Show)
persons = [Person "Seb" 22, Person "Ann", 34]

showPerson :: Person -> String
showPerson p = _name p <> ": " <> show (age p)

traverseOf_ (folded . to showPerson) putStrLn persons
-- will return:
-- Seb: 22
-- Ann: 34

-- example from Optics By Example / page
>>> import Control.Monad.State
>>> execState (traverseOf_ folded (modify . const (+1)) tvShows) 0
2

foldOf :: Monoid a => Fold s a -> s -> a / foldMapOf :: Monoid r => Fold s a -> (a -> r) -> s -> r foldOf and foldMapOf are function which allows the use of Monoids with folds.
foldByOf :: Fold s a -> (a -> a -> a) -> a -> s -> a / foldMapByOf :: Fold s a -> (r -> r -> r) -> r -> (a -> r) -> s -> r foldByOf and foldMapByOf are similar to foldOf and foldMapOf, but allow the callee to specifiy the append function and identity value.

tvShows = [("How I Met Your Mother", "Josh Radnor"), ("How I Met Your Mother", "Alyson Hannigan"), ("Buffy the Vampire Slayer", "Alyson Hannigan")]

foldMapByOf (folded . _2) (M.unionWith (+)) mempty (\n -> M.singleton n 1) tvShows
-- will return [("Alyson Hannigan",2),("Josh Radnor",1)]

foldrOf :: Fold s a -> (a -> r -> r) -> r -> s -> r / foldlOf :: Fold s a -> (r -> a -> r) -> r -> s -> r foldrOf and foldlOf are functions which are like foldOf and foldMapOf, but the identity value and append function can be set by parameters. They are the equivalence of foldr and foldl.

Concat existing `Fold`s

Already existing folds (and lenses) can be combined to one big Fold if the types match.

Here's an alternative implementation of crewMembers

crewMembers :: Fold ShipCrew String
crewMembers = folding (\s -> s ^.. captain
                          <> s ^.. conscripts . folded)

Traversal

A traversal can, like a fold, get zero or more elements but also set zero or more elements. Because of this, lenses and folds are valid traversal but not all traversals are lenses and folds.

The type Traversal s t a b has the following generics:

s - the structure before the action
t - the structure after the action
a - the focus before the action
b - the focus after the action

Wenn the type of the focus is changed by a setting operation the operation has to convert all elements. An operation which only focuses on part of the traversal can't change the type of the focus.

Like with lenses, there is also a simple traversal: Traversal' s a, where the generic mean:

s - the structure before and after the action
a - the focus before and after the action

Actions

When actions are used as a setter, then all values are changed, which would be returned with a getter. With these kind of action only part of the traversal can be updated. This also means that the focused type can't c

[1, 2, 3, 4, 5] & taking 3 traversed *~ 10 -- will return [10, 20, 30, 4, 5]
[1, 2, 3, 4, 5] & dropping 3 traversed *~ 10 -- will return [1, 2, 3, 40, 50]
[1..5] & traversed . filtered even *~ 10 -- will return [1, 20, 3, 40, 5]

traversed :: Traversable f => IndexedTraversal Int (f a) (f b) a b Creates a Traversal which will focus on every element in the data structure. It is more powerfull than folded, but can be used with less types.
both: Bitraversable r => Traversal (r a a) (r b b) a b both can be simplified to both: Bitraversable r => Fold (r a a) a and creates a Fold for a tuple with the same types ((String, Int) wouldn't be valid). But only the last two item of a tuple are actually traversed.

("hello", "wolrd") ^.. both -- will return  ["hello", "world"]
("hi") ^.. both -- will return ["hi"]
("hi", "hello", "world") ^.. both -- will return ["hello", "world"]

each :: Each s t a b => Traversal s t a b each can be simplified to each :: Each s s a a => Fold s a. It does almost the same thing as both, but over an arbitrary sized tuple.

("hi", "hello", "world") ^.. each -- will return ["hi", "hello", "world"]

filtered :: (Choice p, Applicative f) => (a -> Bool) -> Optic' p f a a Filters a fold (or other optics) and can simplify to filtered :: (s -> Bool) -> Fold s s

[1..10] ^.. folded . filtered even -- will return [2,4,6,8,10]

filteredBy :: Fold s a -> IndexedTraversal' a s s An alternative to filtered which uses a fold as the predicate. The type signature above is simplified.on

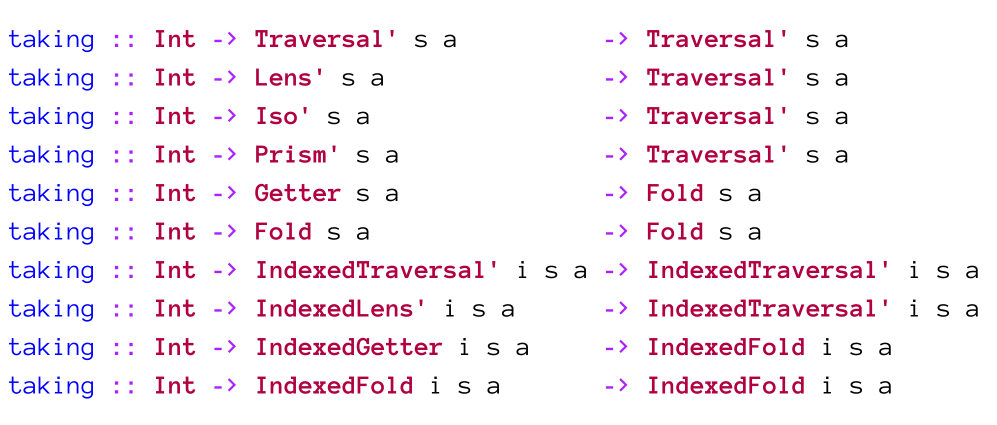

taking :: (Conjoined p, Applicative f) => Int -> Traversing p f s t a a -> Over p f s t a a This method is the equivalent to take with traversals and folds.
dropping :: (Conjoined p, Applicative f) => Int -> Over p (Control.Lens.Internal.Indexed.Indexing f) s t a a -> ver p f s t a a This method is the fold / traversal equivalent to drop

[1..] ^.. taking 5 folded -- will return [1, 2, 3, 4, 5]

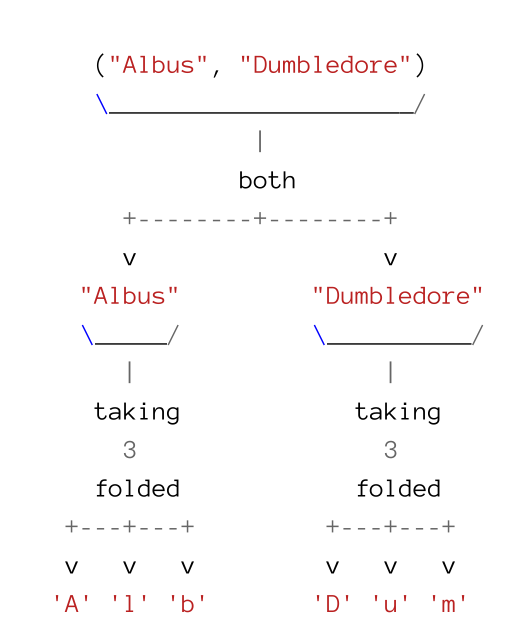

[[1, 2, 3], [10, 20, 30], [100, 200, 300]] ^.. folded . taking 2 folded -- will return [1, 2, 10, 20, 100, 200]

High-Order actions apply, like other actions, two an element of a fold, not to the fold itself. The following graphic shows the code ("Albus", "Dumbledore") ^.. both . taking 3 folded

takingWhile :: (a -> Bool) -> Fold s a -> Fold s a The traversal/folding equivalent to takeWhile. It accepts a predicate and will return element as long as the predicate returns true
droppingWhile :: (a -> Bool) -> Fold s a -> Fold s a The traversal/folding equivalent to dropWhile. It will "drop" elements from fold elements until predicate returns false

[1..]  ^.. takingWhile (< 5) folded -- will return [1, 2, 3, 4]
[1..10] ^.. droppingWhile (< 5) folded -- will return [5, 6, 7, 8, 9, 10]

worded :: Applicative f => IndexedLensLike' Int f String String Simplifies to worded :: Traversal' String String and will focus on each word in the string
lined :: Applicative f => IndexedLensLike' Int f String String Simplifies to lined :: Traversal' String String and will focus on each line in the string

"Hello world" ^.. worded -- will return ["Hello", "world"]
"Hello\n How are you?" ^.. lined -- will return ["Hello"," How are you?"]
"Hello world" & worded %~ \s -> "*" ++ s ++ "*" -- will return "*Hello* *world*"

beside :: Traversal s t a b -> Traversal s' t' a b -> Traversal (s,s') (t,t') a b

beside applies a the first traversal to the first element of the tuple and the second traversal to the second tuple element.

("hi", "moin") ^.. beside (to length) (to $ const 200) -- will return (2, 200)
("hello", (2, "moin")) ^.. beside id _2 -- will return ("hello", "moin")
 ("hello", (2, "moin")) & beside id _2 %~ (++ "!") -- will return ("hello!", (2, "moin!"))

element :: Traversable f => Int -> Traversal' (f a) a Focuses on the element with the given index

[0..4] ^? element 2 -- will return Just 2
[0..4] ^? element 20 -- will return Nothing
[0..4] & element 2 *~ 10 -- will return [0, 1, 20, 3, 4]

Operators

The operator over (aka. %~) and set (aka..~), which are known from lenses, can also be used with traversals.

("hello", "moin") & both %~ (++ "!") -- will return ("hello!", "moin!")
over both (++ "!") ("hello", "moin")  -- will return ("hello!", "moin!")
("hello", "moin") & both %~ length -- will return (5, 4)

("hello", "moin") & both .~ "good morning" -- will return ("good morning", "good morning")
set both "good morning" ("hello", "moin") -- will return ("good morning", "good morning")

Effects can be run on Traversals with the method traverseOf :: LensLike f s t a b -> (a -> f b) -> s -> f t which can be spezialized to traverseOf :: Traversal s t a b -> (a -> f b) -> s -> f. traverseOf works like traverse but with Traversables

traverseOf both readMaybe ("1", "2") :: Maybe (Int, Int) -- will return (1, 2)
traverseOf both readMaybe ("hello", "2") :: Maybe (Int, Int) -- will return Nothing

traverseOf each readMaybe ["1", "2"] :: Maybe [Int] -- will return Just [1, 2]
traverse readMaybe ["1", "2"] :: Maybe [Int] -- will return Just []

Optics

Capabilities

Operators

Lenses

Lens Laws

Virtual Fields

Lenses & Operators

Composing Lenses

Folds

Operators

Actions

Concat existing Folds

Traversal

Actions

Operators

Each

Concat existing `Fold`s
