Cache

image-20230419110030095

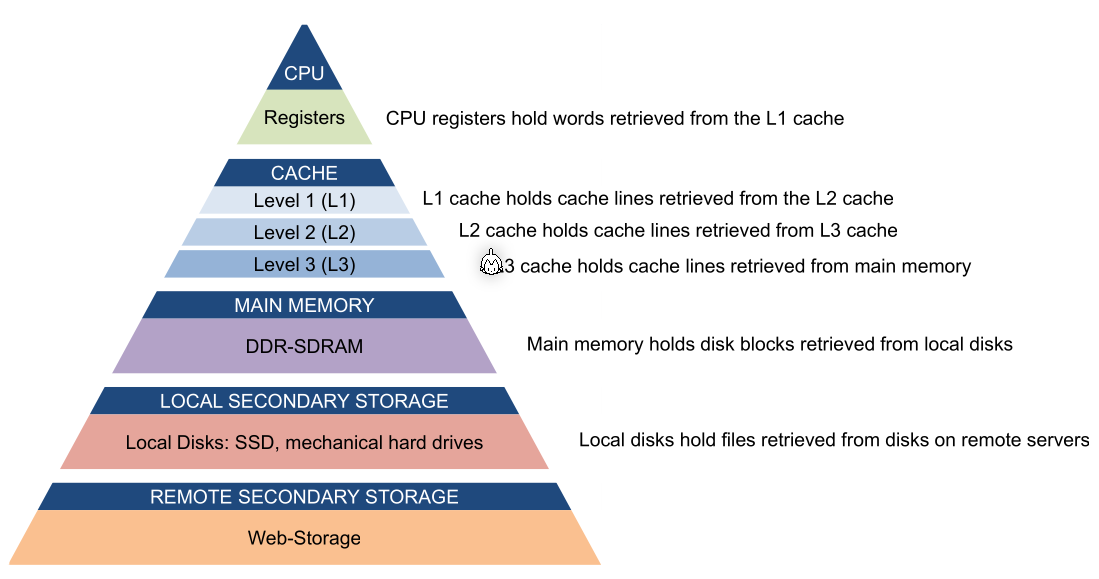

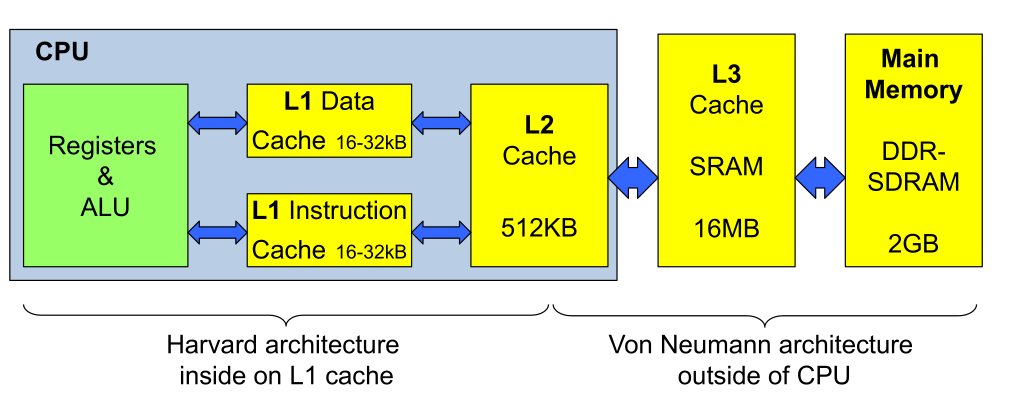

The L1-cache can be split into data and instruction cache which would represent a Harvard architecture.

image-20230419110455427

Principle of Locality

  • Spacial Locality If one byte is read, it is probable that the next few bytes will read as well This is archived by having a cache which works in blocks.
  • Temporal Locality If one byte is read, it will probably be read again This is automatically archived by a cache.
for(int i = 0; i < 10000; i++) {
    a[i] = b[i]; // spatial locality
}

if(a[1234] == a[4321]) { // temporal locality
    a[1234] = 0;
}

Cache Mechanism

The cache works with blocks of data. This satisfies both spacial and temporal locality.

If the CPU requests a block, which currently is not in the cache, then this is a cache miss. A cache miss is expensive since the CPU has to wait for a slower cache or RAM. If a requested block is cached, then this is a cache hit.

One way to improve performance is to optimise for higher hit rates.

Cache Organisation

The tag specifies which block in memory is cached, v is a bit which indicates the cache line is valid, and in the data bytes the actual cached data is stored.

From a memory block id, its corresponding memory address can be calculated.

image-20230419111715630

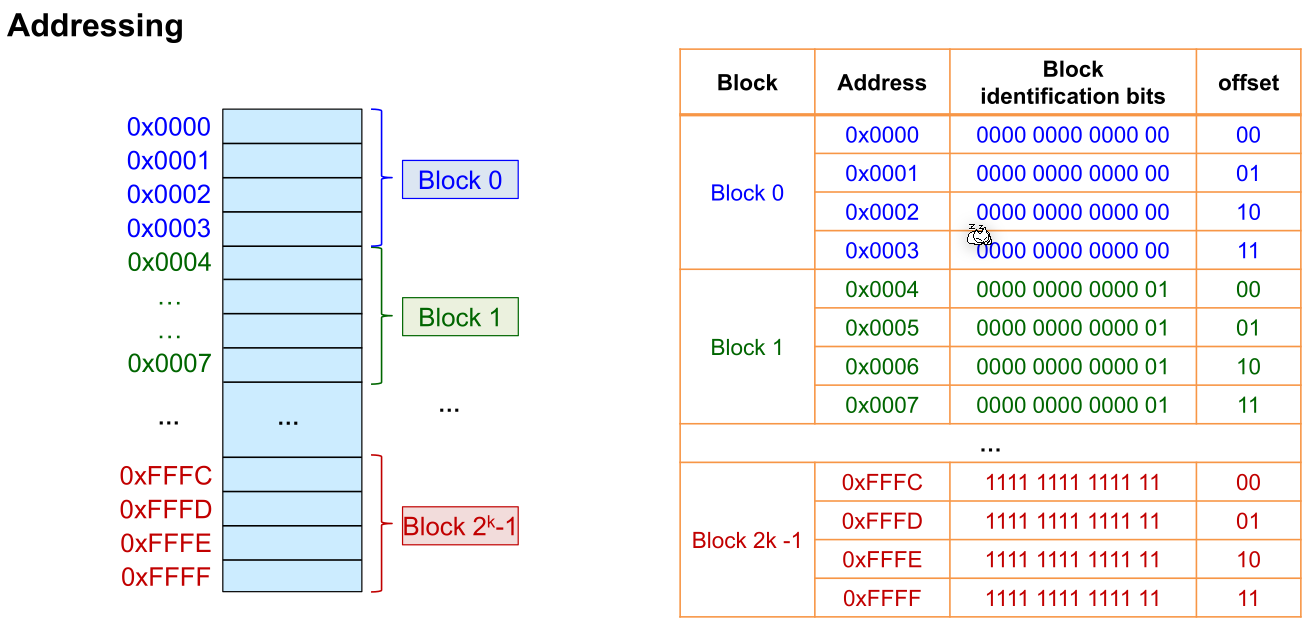

In the following example, such a table is used. Each block is the size of 4 bytes.

image-20230419111946074

Fully Associative

image-20230503101742035

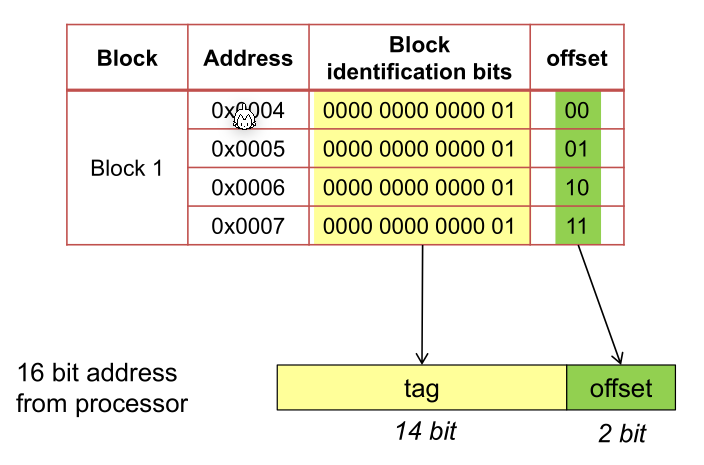

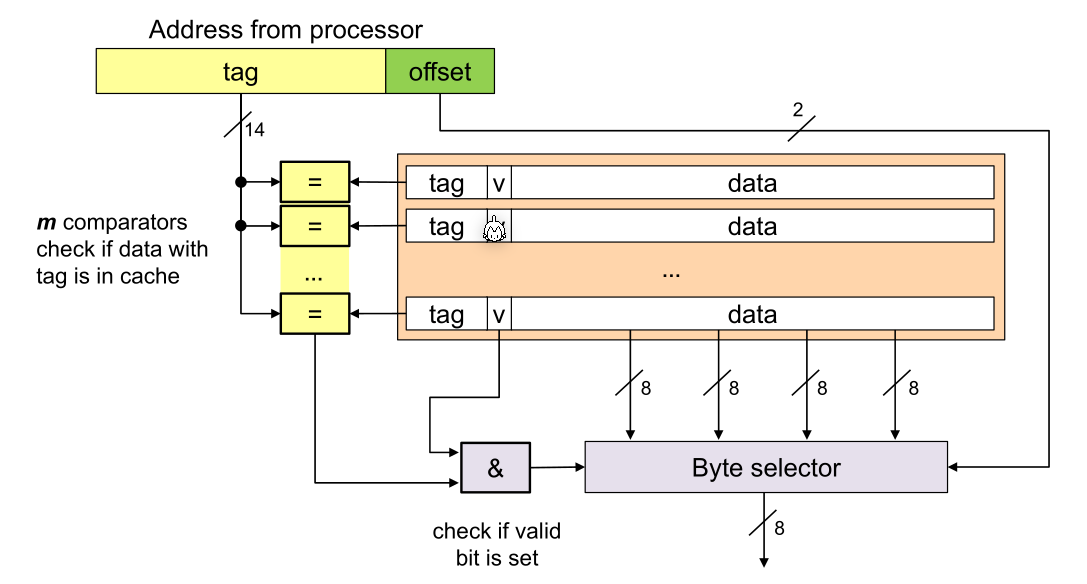

To check and retrieve data from the cache, the controller cuts of the offset and compares the tag with each cache line tag. If a matching tag line is found and its valid bit is set then the CPU can read from the byte selector.

image-20230503101838643

This organisation schema has a few disadvantages:

  • If the cache is full there needs to be a replacement logic built in hardware
  • A lot of comparators are needed

Direct Mapped

In a direct mapped cache each block can be at exactly one place. E.g. block 0, 256, 512, ... can only be placed in the cache line 0.

image-20230503102655937

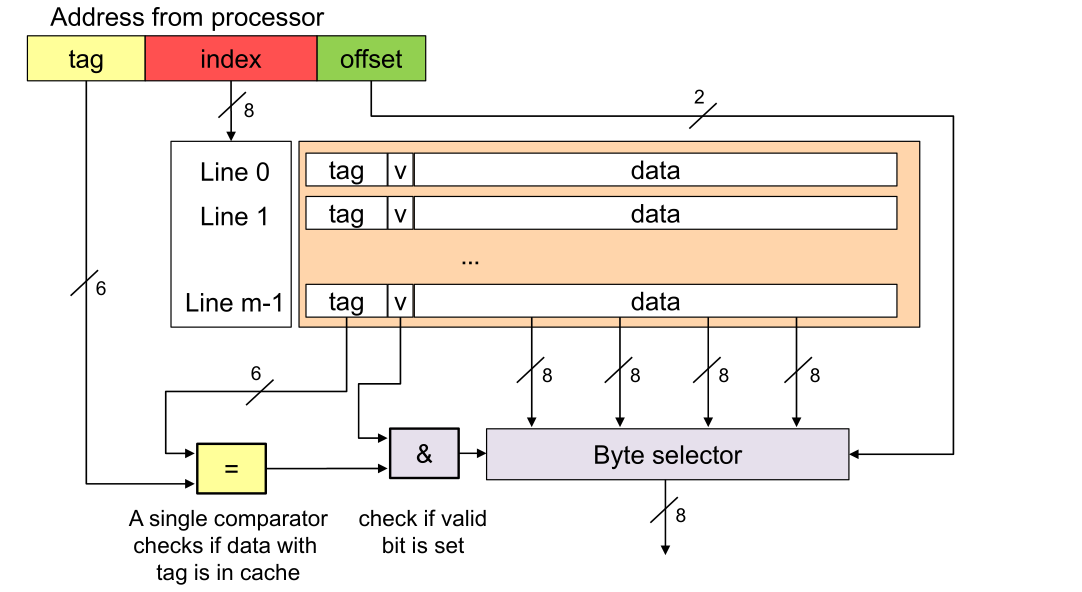

To read from the cache, only one comparator is needed since the cache line can be calculated by the requested address. The cache only has to validate that the stored block in the cache line is the actually requested address.

image-20230503103004650

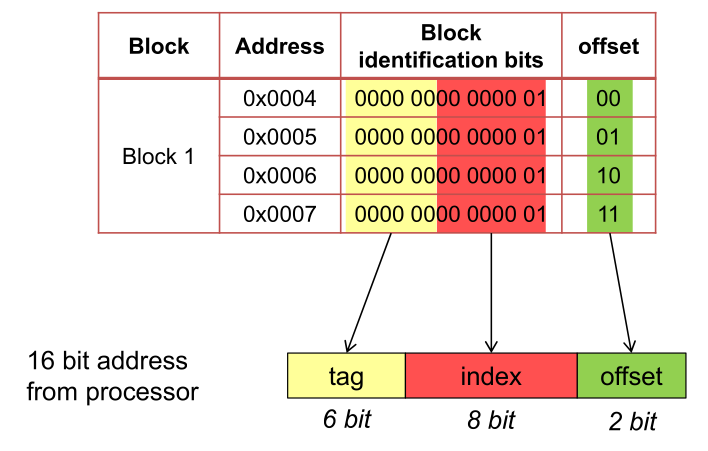

To find the cache line, the index is used. Because of this, less memory has to be used to store which memory has been cached.

image-20230503102522752

The advantage of this is:

  • The replacement strategy, if the cache is full, is already built in
  • Only one comparator is needed
  • Less memory is needed for management

N-Way Set Associative

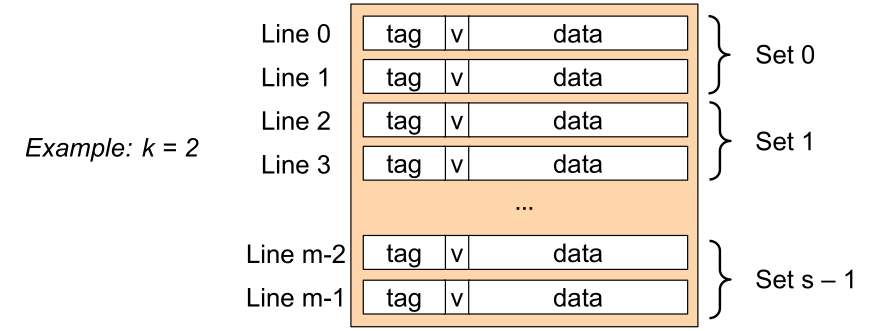

N-way set associative is a compromise between direct mapped and full associative.

Compared to direct mapped, a block can only be in exactly one set, which consists of multiple cache line.

image-20230503103833767

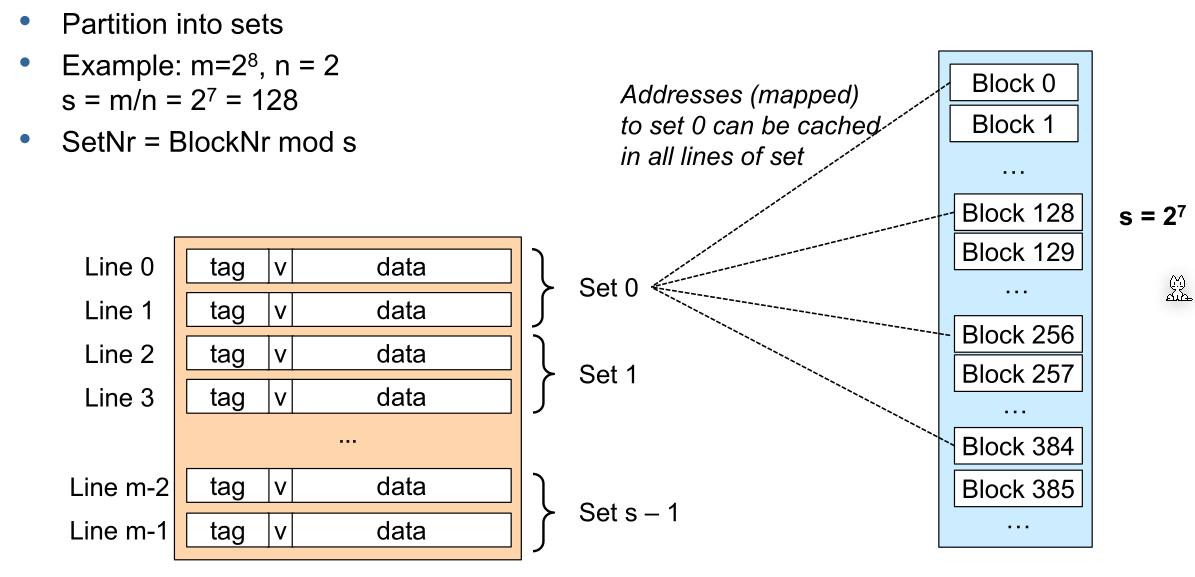

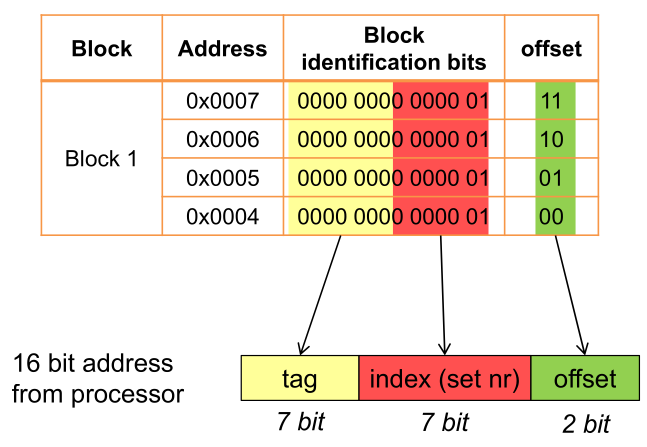

The following shows how block addresses are split up:

image-20230503104012569

image-20230503104056652

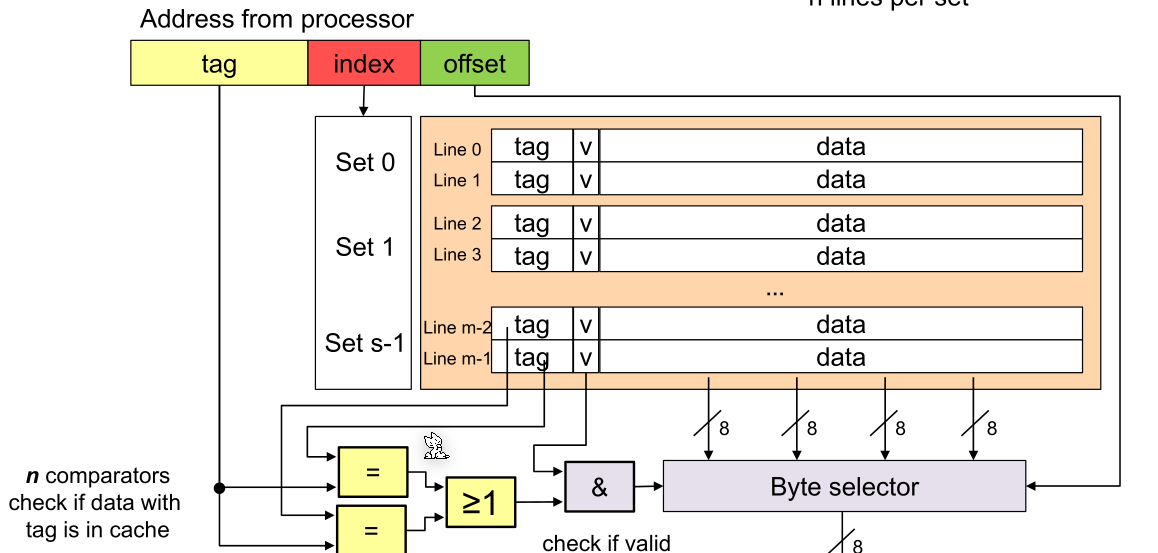

This shows the logic to read from the cache:

image-20230503104208957

Comparison

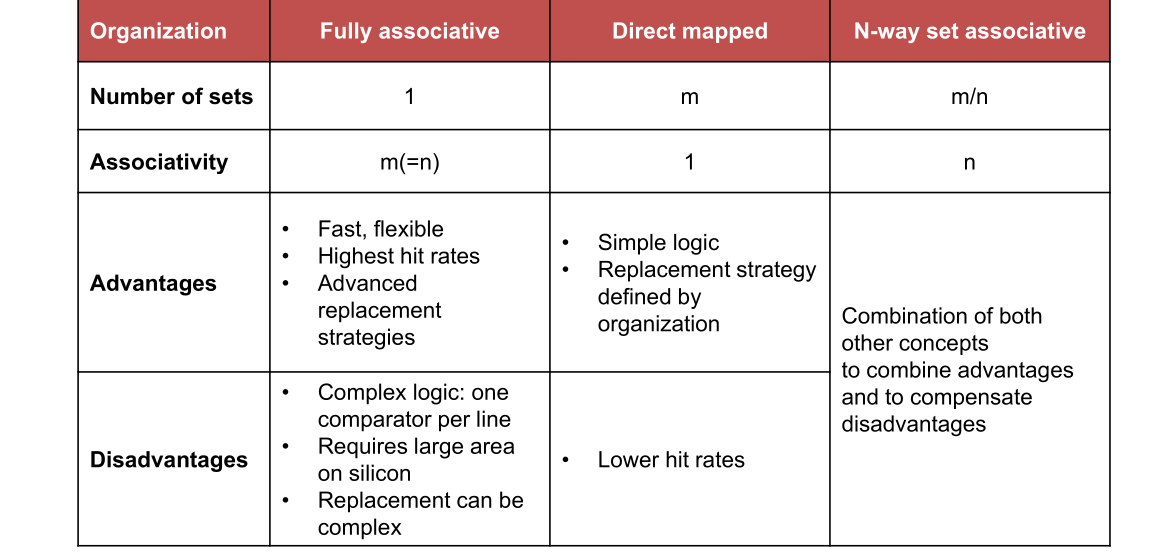

The following table \(m\) is the number of lines, \(n\) is the number of lines per set

image-20230503104814826

Cache Miss

A cold miss happens on the first access of a block.

A capacity miss happens when a block was already read but was purged due to the capacity of the cache.

A conflict miss happens when a block was purged because another block associated with the set has been cached in the set.

There are a number of performance metrics:

Hit Rate is the number of hits per total number of accesses, while the miss rate is the number of misses per total number of accesses.

The hit time is the time required to access a cached block. The miss penalty is the time needed to access a byte which was not cached.

The average access time is calculated with: $Access Time=HitTime + MissRate\cdot MissPenality $

Replacement Strategy

  • LRU: Least recently used
  • LFU: Least frequently used
  • FIFO: First In–First Out (= oldest)
  • Random Replace: randomly chosen

For all, except random replace, needs additional memory for the required statistics for the replacement strategy.

Write Strategy

If a byte is written and there is a cache entry, there are two potential strategies:

  • Write-through: Write immediately to memory and clear the cache
  • Write-back: Delay writing to memory. Instead write to the cache and write it back, once the block is replaced.

If there is no cache entry, these strategies are possible:

  • Write-allocate: Load line into cache (from memory) and update the line in the cache
  • No-write-allocate: Write immediately to memory

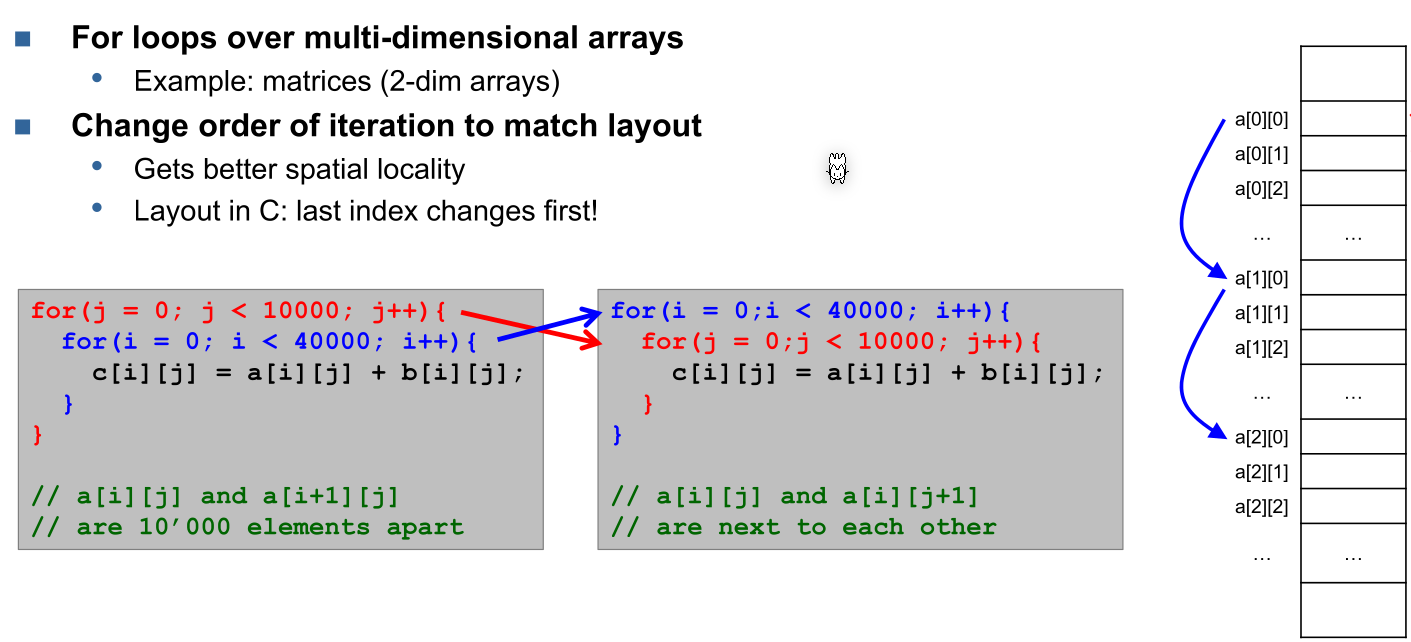

Optimisations

image-20230503111344382
