History of C

A quick timeline of C's development:

Year	Name	Event
1970	C	Dennis Ritchie at Bell Labs developed the language for use in UNIX
1978	K&R C	Ritchie and Kerningham release C
1983	C++	Stroustrup develops C++ as a C extension
1989	ANSI C	C is standardized
1990	C90	ISO copies the ANSI standard
1995	Java	Java is released by Sun
1999	C99	C is update with newer extenbsions
2000	C#	Microsoft develops a Java competitor
2011	C11	ISO standardizes C with better c++ compat
2018	C18	Minor changes to the C11 standard

Overview and Basics

C is a procedural language. It is not object-oriented whatsoever. There is no concept of classes or methods. Only functions exists. There is a single entry-point for every application, main. Once main ends, the application terminates.

Files

In general, there are 4 different file types that are associated with C:

File extensions	Usage
.c	A pure text file that usually contains code
.h	A header files that provides definitions for functions and variables that other files can import and use
.d	A file containing all dependecies of a program. Usually generated by Make and can be ignored
.mk/Makefile	A Make definition used to make compiling easier
.o/no extension	The output file(s) of the compiler

Data Types

By default, C has 4 distinct data types that can also be extended with some keywords. Keywords in brackets signify that the compiler infers it when it isn't replaced with another keyword.

Keywords	Bytes	Numeric range
`[signed] char`	1	$-128$ to $127$
`[signed] int`	4	$-2^{31}$ to $2^{31}-1$
`float`	4	$-3.410^{38}$ to $3.410^{38}$
`double`	8	$-1.7910^{308}$ to $1.7910^{308}$

`unsigned char`	1	$0$ to $255$
`[signed] short [int]`	2	$-32768$ to $32767$
`unsigned short [int]`	2	$0$ to $65535$
`unsigned [int]`	4	$0$ to $2^{32}-1$
`[signed] long [int]`	8	$-2^{63}$ to $2^{31}-1$
`[signed] long long [int]`	8	$-2^{63}$ to $2^{31}-1$
`unsigned long [int]`	8	$0$ to $2^{64}-1$
`unsigned long long [int]`	8	$0$ to $2^{64}-1$

`long double`	10	$-1.210^{4932}$ to $1.210^{4932}$

Literals

C supports implicit typing for literals.

Type	Example
Decimal number	1234
Octal number	0123
Hexadecimal number	0x123
ASCII code	`'A'`

Decimals and ASCII codes are always signed ints. If the int is too large, it's a long instead.

A combination of U and L can be used to explicitly declare a unsigned or long value.

Numbers with decimal points are always doubles unless appended with F where they are read as floats instead.

Special characters are escaped using a backslash \. ASCII characters may also be expressed using their hexadecimal, octal or decimal notation when escaped.

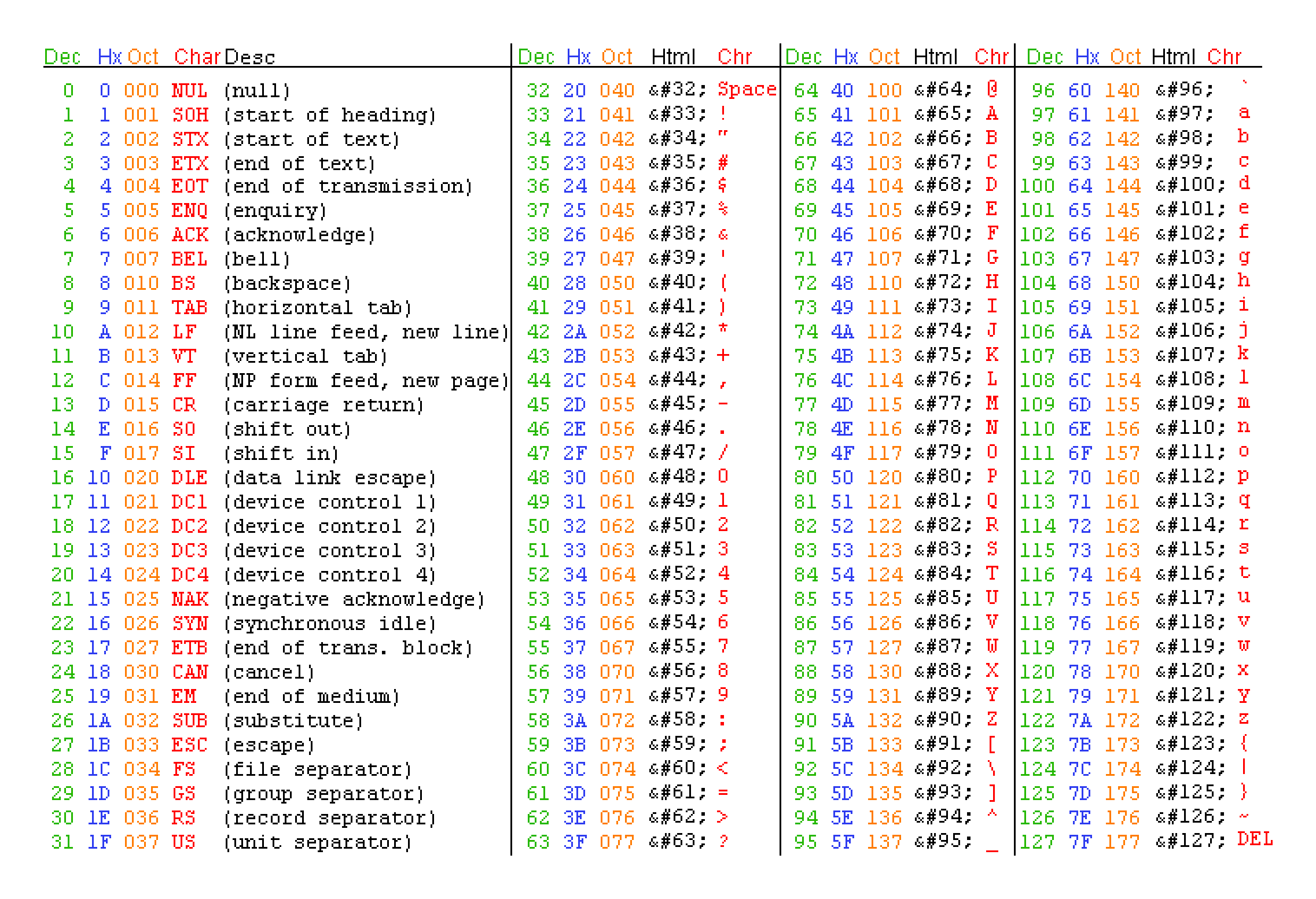

ASCII Table

String Basics

In C, strings are zero-terminated arrays of chars. As an example, the phrase 'amogus' requires an array with space for 7 elements rather than 6. This is because the zero-terminator NUL or \0 is required.

Strings may also be formatted:

Specifier	Conversion
%c	A single char
%s	An array of chars
%d or %i	Signed integer to decimal representation
%u	Unsigned integer to decimal representation
%x	Unsigned integer to hexadecimal representation
%o	Unsigned integer to octal representation
%f	Float to decimal notation
%e	Float to exponential notation
%g	Float to decimal or exponential notation

Example:

a = scanf("%d%d%d", &day, &month, &year);

Syntax

Macro Definition

C supports the definition of so called macros. These tell the C pre-processor to replace certain strings with a defined constant. This is most often used to define constants, as it's cheaper to directly store those values inside the program without having to allocate a variable for each constant. Example:

This definition...

#define MAX_LENGTH 5

...is applied to this piece of code...

int length = MAX_LENGTH;

...and results in this

int length = 5;

Declaration & Definition

The terms declaration and definition may sound similar but are positively distinct. A declaration merely specifies how a name is used throughout the program whereas a definition allocates memory or specifies a function. As a result, a definition can only happen after a declaration. For brevity, the term 'declaration' will be used throughout the document to address both of the terms unless.

Base types are implicitly known to the compiler. (e.g. int, char, etc.)
Custom structs and enums define a type.
Defined types without a body are merely declared.
The typedef keyword can be used to create an alias to any base or custom type.
The const keyword can be used to create an unmodifiable variable.

Operators

Arithmetic

Operator	Purpose
a + b	Guess what
a - b	Really now?
+a	Unary plus, generally useless but can widen lesser base types to the size of `int`
-a	Unary minus, results in the additive inverse of a1
a * b	Multiplication
a / b	Division, segfault if b is 0
a % b	Remainder of a / b or modulo
++a	Increments variable, then returns it
a++	Returns variable, then increments it
--a	Decrements variable, then returns it
a--	Returns variable, then decrements it

Comparison

Operator	Purpose
>	Greater than
<	Less than
>=	Greater than or equal to
<=	Less than or equal to
==	Equal to
!=	Not equal to

Logical

Operator	Purpose
!a	Logical negation, equivalent to `a == 0`
a && b	Logical AND, returns 0 if a and b are zero, returns 1 otherwise
a \|\| b	Logical OR, returns 0 if at least a or b are zero, returns 1 otherwise

Bitwise

Operator	Purpose
~a	NOT, inverts all bits
a & b	AND, keeps all 1 bits that are the same
a \| b	OR, keeps all 1 bits
a ^ b	XOR, turns all 1 and 0 pairs into 1
<<	Left shift, multiplication by 2 in some cases
>>	Right shift

Assignment

All arithmetic and bitwise operators can be combined with the assignment operator. These lines are equivalent:

a += b;
a = a + b;

Pointer

Operator	Purpose
a[b]	A pointer to the element of index b in the array a
*a	Indirection, object pointed to by a if a
&a	Memory address of a
a->b	Structure dereference, member b of object pointed to by a
a.b	Structure reference, member b of object a

Other (reduced)

Operator	Purpose
a ? b : c	If a then b else c
typeof(a)	The size of a in bytes
(type)a	Cast a to type

Precedence and associativity

Precedence is the order of evaluation of operators within operations. When all operators posess the same precedence, associativity takes over. In general, all operators default to left-associativity with the exception of prefixed unary operators, conditional operators and assignment operators.

Booleans

Default C does not support Booleans. However, most libraries treat 0 as false and every other number as true.

Booleans can also be imported with stdbool.h

Enums

Enums work similar to other languages. They have a name and each value can be assigned any integer value. Example

typedef enum {TRUE = 1, FALSE = 0} fakeBool;

When declared with typedef, enums can be used as types.

Structs

Structs are a useful tool to create custom data types in C. They can contain any number primitive types or other custom types. The sizeof keyword accurately summarizes the needed data to store the struct. Example:

typedef struct {
  usigned int inhabitants;
  float longitude;
  float latitude;
  bool available;
  float surface;
} House;

Variables & References

This chapter shows examples on how data could be passed to other functions. Note that parameters and return values always occur by value. To pass a pointer into a function, it has to be dereferenced first with &.

Call by value

void func(int a, int b)
Passes the actual value. Effectively creates a copy

Call by reference

void func(int *a, int *b) Passes a pointer to a value. Changes to that value propagate up.

example:

// Increment first parameter by second parameter.
// Pass first parameter by reference and second by value.
void increment(int *p, int step);

int main(void) {
    int a = 3, b = 5;
    increment(&a, b); // after the call, the following condition
} // must be fulfilled: a = a + b (= 8)

void increment(int *p, int step) {
    *p += b;
}

Arrays as parameters

void func(int a[])

is equivalent to

void func(int *a)

Structs as parameters

struct t { int v; };

void func(struct t arg);

or

struct t { int v; };

void func(struct t *p);

Pointer to function

void logger(char *msg); // Function declaration
void (*out)(char *); // Error

out = &logger; // Memory address of the function is stored
out = logger; // Error
...
(*out)("Hello"); // Equivalent to writing logger("Hello");
out ("Hello"); // Error

Variable amount of args

stdarg.h adds support for multiple variables:

int func(unsigned amount, ...)
{
    va_list args;
    unsigned i;
    int value;
    int sum = 0;
    va_start(args, amount);

    for (i = 1; i <= amount; i++)
    {
        value = va_arg(args, int);
        sum += value;
    }

    va_end(args);
    return (amount ? sum/amount : 0);
}

int main(void)
{
    (void) printf("Mittelwert 0: %d\n", mittelwert(0));
    (void) printf("Mittelwert 1: %d\n", mittelwert(1, 2));
    (void) printf("Mittelwert 3: %d\n", mittelwert(3, 4, 5, 6));
}

Global Variables

Global variables are a dangerous but useful tool

Variables declared outside of function scope are considered global
Every part of that program can access any global variable
The default value is 0
Local variables are undefined by default
The static keyword can limit access to the current source file
Using static inside a function body keeps its value alive throughout multiple calls of said function

Modularization

Compilation

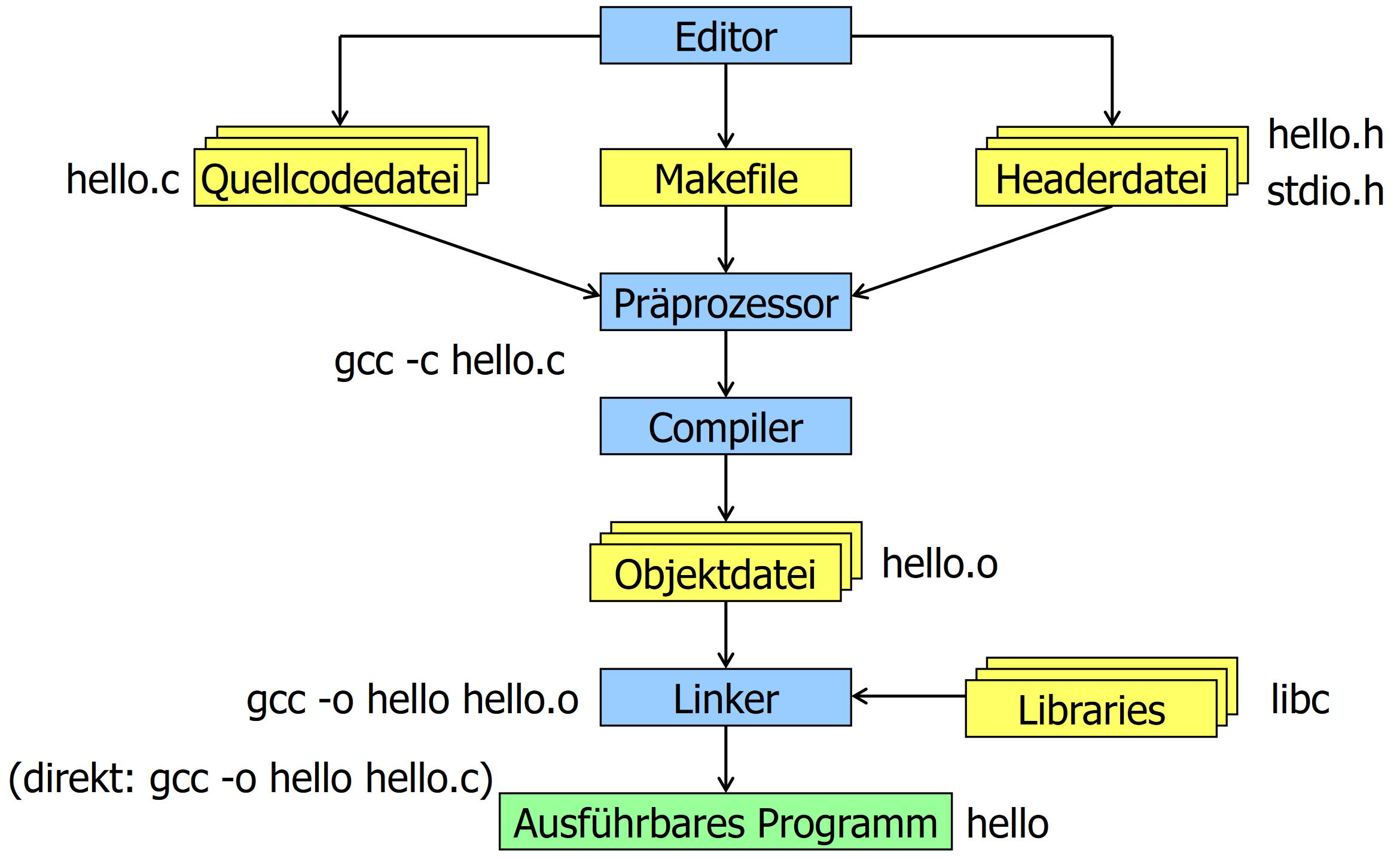

The compilation process consists of 3 steps:

The pre-processor executes all pre-processor directives (e.g. #include, #define, etc.)
The compiler transforms all code to a machine-readable byte stream
The linker links all calls to different libraries and components together

Compilation process

A common command to compile a program:

gcc -Wall -g -o program file1.c file2.c

System libraries that are not part of gcc can be specified with -llibrary. This translates to -L "liblibrary.a" but searches in multiple system directories.

Header Guards

When including header files, it may occur that a header file is included more than once which leads to compiler errors. To prevent this, header guards can be implemented. Simply wrap the whole header file like this:

// header.h
#ifndef HEADER_H
#define HEADER_H

... // Definitions here

#endif

Useful Libraries

Library	Use
stdio.h	IO functions
string.h	Working with strings
stdlib.h	RNG, memory control, process control
stdarg.h	Vararg support
stddef.h	Additional constants like `NULL`
math.h	Math functions
errno.h	Adds `errno`, a global variable that stores an error code
signal.h	Signal-handling functions (e.g. exceptions)
assert.h	Testing library
ctype.h	Tests for chars
float.h	Macro constants relevant to floats and doubles
limits.h	Limit constants of integral types
locale.h	Get locale information
setjmp.h	Convenience functions for jumping
time.h	Time and date functions

Make

Make is a tool to compile modularized code into programs. Additionally, it only recompiles parts of the code that were unchanged.

Syntax

Makefiles consist of rules, commands and comments.

Comments are marked with #.
target: is used to define a sub-command
dependencies: are used to define dependencies
command: is defines a command to be executed when a dependencies is newer than a target
<TAB> [command] is used to denote commands
Variables can be declared as VAR = VAL.c and read via $(VAR)
The pseudo-target .PHONY lists files to be ignored
Variables can be substring-ed with %: $(VAR:%.c=%.o) results in VAL.o

Example makefile: https://github.zhaw.ch/thalmma5/snp-lab-code/blob/my-code/shared.mk

Arrays

Arrays in C are always contiguous in memory. An array declaration does nothing more than reserve the necessary space in memory, place elements if applicable and return a pointer to the first value of the array. To access any other element of the array, the pointer to the first element is added to the index of the desired element times the sizeof result of the type. This also makes it impossible to implicitly know the size of the array.

Array Sizes

There are a few ways to access the size/last element of an array. The obvious solution would be to store the last index during array creation, as arrays are immutable:

#define N_ENTRIES 100

int array[N_ENTRIES] = { 0 };
...
for (int i = 0; i < N_ENTRIES; i++) {
  int a = array[i];
}

The other method would be to use a data sentry/terminator value:

#define DATA_SENTRY (-1)

int array[] = { 1, 2, 3, DATA_SENTRY };
...
for (int i = 0; array[i] != DATA_SENTRY; i++) {
  a = array[i];
}

Working with Strings

As mentioned already, strings are merely zero-terminated char arrays. As such, specia tools can be employed to make working with them easier. string.h is the most common tool for this.

Most important functions

Signature	Description	Returns
`int strlen(const char s[]);`	Gets the length of the given string without the terminator(s)	Length
`int strcmp(const char s1[], const char s2[]);`	Compares to strings	The first `s1[i] - s2[i]` that is !=0, 0 otherwise
`char* strcpy(char dest[], const char source[]);`	Copies a string from source to dest	C99: Copy of dest; C11: errno_t
`char* strcat(char s1[], const char s2[]);`	Concatenates two strings, s1 must have enough space	Pointer to s1

Pointers

The dreaded topic: Pointers. Infamous for being stupidly hard to understand. However, pointers really aren't that hard to understand. Let's set the stage first. Every variable has to be stored somewhere in memory. We don't care where in memory since our random-access memory is stupidly fast nowadays. We still need know how to access that data, however. Memory addresses are used for that purpose. Whenever a variable is allocated in C, a pointer that points to a memory address is created. Memory addresses and by extension pointers are nothing more than integers. Usually 32-bits or 64-bits long. As such, you can also store a pointer in memory. Then, you get a pointer that points to a pointer that points to a piece of data! Pointers also have a data type so that C knows how far to read into memory to get all the data. Here are a few examples:

A simple variable

int a = 1;

A pointer that points to num

int num = 1;
int *a = &num;

An array of pointers

int *a[5];

A pointer to an array of ints

int (*a)[5];

Pointer to pointer to int

int **a;

Pointer to a function

void (*out)(char *);

Reading Pointers

When reading pointers, the * receives a different meaning. Where p is a pointer to an integer, the statement int a = *p; tells C to assign a the object that p is pointing to.

Then there is a new operator, the &. Where a is an int, the statement int *p = &a; tells C to get the address where a is located and to store it in p.

When reading arrays, the statement array[3] is equal to *(array + 3). Note, however, that the + 3 in question is multiplied by the sizeof result of array's type.

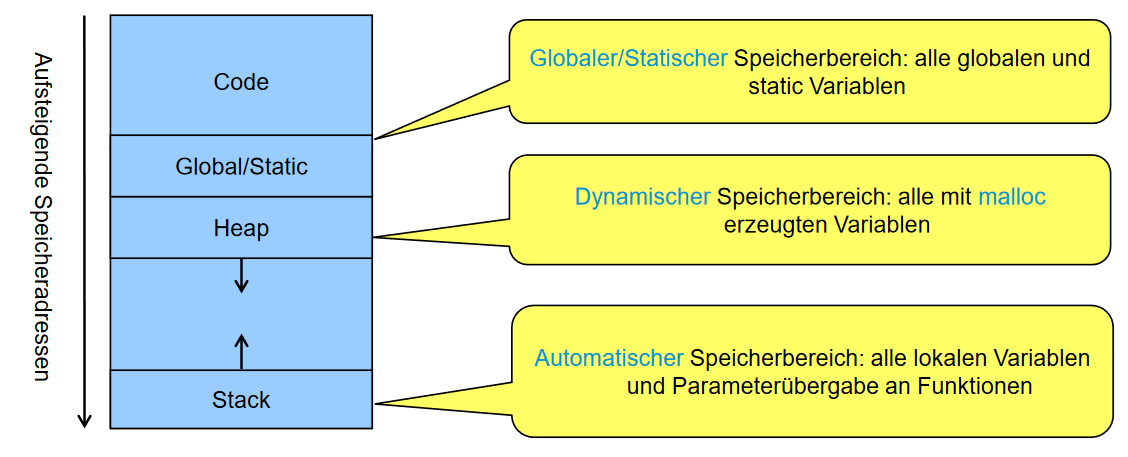

Memory Management

Most programs posess four memory sections: The code ith all the functions, global and static variables, the heap for dynamically allocated variables and the stack where local variables and parameters are stored.

Memory Management

Heap Memory

The heap is an immensly powerful tool that can be accessed with stdlib.h. Using *malloc(size_t size) a memory region of any size can be reserved for whatever purpose. malloc simply returns a pointer to it. However, it is very important that free(void *ptr) is called after that region of memory is not needed anymore, as otherwise memory leaks will occur.

Basic example

int *p = malloc(3 * sizeof(int)); // Returns NULL when no memory available
if (p == NULL) { /* error handling */ }
p[1] = 5;
free(p); // Memory is released

Heap memory is most useful for dynamically allocated arrays or dynamic collections like linked lists.

Follow these guidelines to prevent most issues:

bad	gud
`gets`	Use `fgets` as the maximum chars can be constrained
`strcpy`, `strcat`	Use `strncpy` and `strncat` as copied chars can be limited
`sprintf`, `scanf`	Always add precision specifiers like `%.100s`
`malloc`, `calloc`, `realloc`	Check for NULL pointers
`free`	Only use it once

Always sanitize user input.

Operating Systems

In essence, an operating system is an abstraction of direct access to CPU Time and other system resources. On the innermost layer there is the Kernel that has direct access to all components. On the outermost layer there are the system and user libraries and programs. To connect these two, system calls are used.

System Calls

A syscall submits a task to kernel that requests a certain resource or action to be executed for the calling user-mode program. System libraries provide implementations of this function to make development more portable. Around 300 different syscalls exist on linux.

Under the hood, syscall() returns -1 when an error occurs and also sets the global errno variable to a relevant error code. When sucessful, returns 0. syscall() is rarely used as is since abstractions exist in glibc and other system libraries.

Shells

Shells provide a textual interface to the operating system. They can usually also execute shell-scripts for automation. Most shells consist of the 3 streams stdin for user input, stdout for program output and stderr for program error output.

Linux Startup Sequence

BIOS initializes all components
Bootloader loads minimal partition (MBR or GPT)
Bootloader loads full mass storage partitions (ext4, NTFS, etc.)
Linux Kernel starts up
Init process starts (usually systemd)
GUI loads, could be a DE or just a shell

System Memory

In order to prevent programs from tampering with unrelated memory, virtual memory is employed to limit access to system memory. For that to work, however, a memory management unit (MMU) is required. The MMU is tasked with translating logical memory addresses to physical addresses that the CPU can work with. Additionally, it contains a memory protection unit (MPU) that observes and prevents illegitimate resource access.

Filesystem

On Linux, everything is a file as it serves as very logical abstraction of most devices. Linux OSes mostly adhere to the FHS as described below.

Filesystem Hierarchy Standard

Directory	Description
/	Root directory
/bin	Binaries that all users need
/sbin	System binaries
/boot	Bootloader files
/dev	Device files
/etc	System-wide config files
/home	User home directories
/lib	Essential libraries
/media	Removable media
/mnt	Mounted filesystems
/opt	Additional software packages
/proc	Process and kernel info
/root	Home of root
/srv	Server files
/sys	Device and driver infos
/usr	Read-only multi-user directory
/var	Logs and temporary files

Files are measured in bytes and can be read by multiple programs simultaneously. This is achieved using file descriptors. One gets created every time a program opens a file and is stored by the kernel until the program closes that file.

Inodes

Files themselves are represented as Inodes, a management unit that associates each file with UUID called an ino. Thes Inodes contain necessary info about the file in questions. (except the file name) It's important to note that Inodes are strictly for accessing files programmatically as they are quite ugly to look at.

Links

Links link a filename to an inode in some way.

Hard link: A strict name-to-inode pair
Symbolic Link: A unidirectional file-to-file link

File Types

There are 7 different file types in Linux.

Type	Identifier	Use
File	`-`	A regular file
Directory	`d`	A file that contains files
Symbolic link	`l`	A file that points to another file
Named pipe	`p`	Unidirectional program-to-program exchange
Socket	`s`	Inter process communication
Block device	`b`	Random-acces storage device
Character device	`c`	Serial input and output of storage

Different file types may be seekable or non-seekable. Seekable files allow arbitrary changing of the read and write position whereas non-seekable files do not.

Working with Files

The stdio.h library provides most necessary functions to properly interact with files. Due to the volatile nature of filesystems, it is very important to always check for errors after each IO operation.

Here is an example:

#include <stdio.h>
#include <stdlib.h>

void perror_and_exit(const char *context)
{
    perror(context);
    exit(EXIT_FAILURE);
}

int main(int argc, char *argv[])
{
    if (argc > 1) {
        FILE *f = fopen(argv[1], "rb");
        if (!f) perror_and_exit(argv[1]); // f is null if something went wrong
        int line_no = 1;
        int print_line_no = 1;
        int c;
        while((c = fgetc(f)) >= 0) {
            if (print_line_no && printf("%6d ", line_no++) < 0) perror_and_exit("printf"); // Something could happen while reading
            print_line_no = c == '\n';
            if (putchar(c) < 0) perror_and_exit("putchar"); // Writing is also dangerous
        }
        if (!feof(f)) PERROR_AND_EXIT("fgetc"); // File may not end
        if (fclose(f) != 0) perror_and_exit("fclose"); // File might not be closable
        return EXIT_SUCCESS;
    }
    return EXIT_FAILURE;
}

Buffering

IO streams can be buffered differently depending on their application.

Unbuffered: Data gets send ASAP (e.g. stderr)
Fully buffered: Data gets only sent when the designated buffer is full (e.g. stdin, stdout)
Line buffered: Data gets only sent when an end-of-line is read

Processes and Threads

A process is an isolated program with its own part of memory. A process can have an arbitrary number of threads. The process contains the code and data of the program. It also has access to resources as if it were the only process running. However, the process can be interrupted at any point without it noticing.

Context switches are used to swap active processes. As such, processes have different states:

Running/active: Currently running
Ready: Ready to run
Blocked: Waiting for an event
Terminated: Work ended but OS has not finished cleaning up

As a rule of thumb, processes are expensive to create and maintain whearas threads are cheap to create but need to share memory.

Lifecycle of a Process

At some point in any multi-threaded process, the process will split into another process. As such, the program must wait for the completion of the new process to ensure consistent behavior.

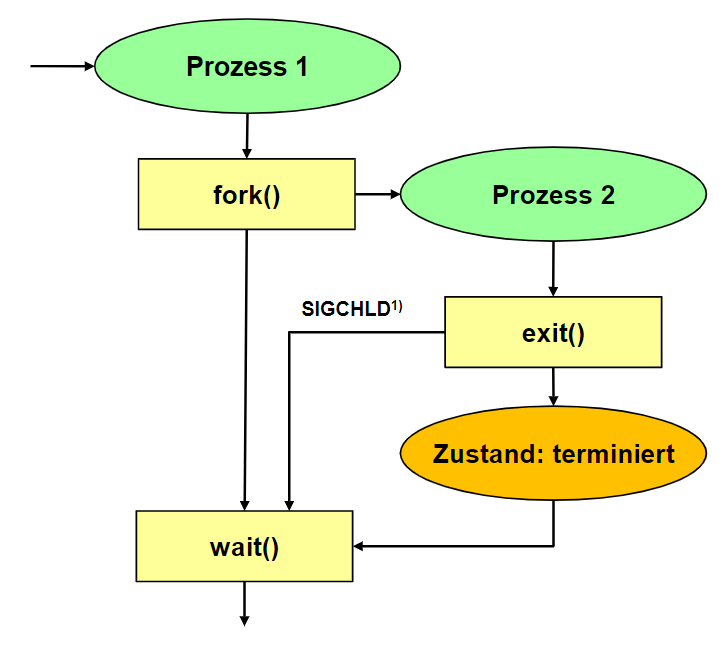

Forking

Functions

fork() duplicates the parent process and continues at the position. Retuns -1 on error, 0 if the process is the resulting child process and the pid > 0 if it's the parent process.

exit() terminates the process and notifies the parent's wait() call.

waitpid() waits for a given pid to terminate.

WEXITSTATUS() gets the exit code from wait().

An example

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/wait.h>

#define PERROR_AND_EXIT(M) do { perror(M); exit(EXIT_FAILURE); } while(0)

int main()
{
    pid_t cpid = fork();
    if (cpid == -1) PERROR_AND_EXIT("fork");
    if (cpid > 0) {
        // still in parent process
        printf("Parent: %d forked child %d\n", getpid(), cpid);
        int wstatus;
        pid_t wpid = waitpid(cpid, &wstatus, 0); // wait blocking for child to terminate
        if (wpid == -1) PERROR_AND_EXIT("waitpid");
        printf("Parent: child %d exited with %d (status=0x%x)\n", cpid, WEXITSTATUS(wstatus), wstatus);
        exit(EXIT_SUCCESS);
    } else {
        // in child process
        printf("Child: %d forked by parent %d\n", getpid(), getppid());
        sleep(3);
        exit(123);
    }
}

ecec() and execv() can be used to execute external programs from new processes. They require a path to the executable and the argv arguments array.

Example

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/wait.h>

#define PERROR_AND_EXIT(M) do { perror(M); exit(EXIT_FAILURE); } while(0)

int main()
{
    pid_t cpid = fork();
    if (cpid == -1) PERROR_AND_EXIT("fork");
    if (cpid > 0) {
        // still in parent process
        printf("Parent: %d forked child %d\n", getpid(), cpid);
        int wstatus;
        pid_t wpid = waitpid(cpid, &wstatus, 0); // wait blocking for child to terminate
        if (wpid == -1) PERROR_AND_EXIT("waitpid");
        printf("Parent: child %d exited with %d (status=0x%x)\n", cpid, WEXITSTATUS(wstatus), wstatus);
        exit(EXIT_SUCCESS);
    } else {
        // in child process: replace current image by new image
        static char *eargv[] = { "ls", "-l", NULL }; // argv of the execv image below
        if (execv("/bin/ls", eargv) == -1) PERROR_AND_EXIT("execv: /bin/ls"); // Equivalent to ls -l
        // this line is never reached
    }
}

The shorthand form system() exists. No forking or waiting required.

#include <stdio.h>
#include <stdlib.h>
#include <sys/wait.h>

#define PERROR_AND_EXIT(M) do { perror(M); exit(EXIT_FAILURE); } while(0)

int main()
{
    int ret = system("/bin/ls -l");
    printf("system() exited with %d (status=0x%x)\n", WEXITSTATUS(ret), ret); // WEXITSTATUS is set by system()
    return EXIT_SUCCESS;
}

Working with pipelines

popen() allows a program to connect to another programs stdin or stdout. Returns a FILE*. pclose() closes the pipe.

Example

#include <stdio.h>
#include <stdlib.h>
#include <errno.h>

#define PERROR_AND_EXIT(M) do { perror(M); exit(EXIT_FAILURE); } while(0)

int main()
{
    FILE *df = popen("df -k --output=pcent . 2>/dev/null", "r");
    if (!df) PERROR_AND_EXIT("popen: df -k .");
    char line[BUFSIZ], *end = NULL;
    long int used = -1;

    while(fgets(line, BUFSIZ, df)) {
        used = strtol(line, &end, 10);
        if (end && end != line && *end == '%') break; // line is spaces-number%-newline
        used = -1;
    }

    if (pclose(df)) PERROR_AND_EXIT("pclose()");

    if (used < 0 || used > 100) {
        errno = ERANGE;
        PERROR_AND_EXIT("df -k .");
    }

    char *msg
    = used < 60 ? "Plenty of disk space (%d%% available)\n"
    : used < 80 ? "Maybe some future disk space problems (%d%% available)\n"
    : used < 90 ? "Need to clear out files (%d%% available)\n"
    : "You may face soon some severe disk space problems (%d%% available)\n";
    printf(msg, 100-used);
    return EXIT_SUCCESS;
}

Lifecycles of Threads

glibc contains functions for thread creation. pthread_create() is used to create a new thread that takes a function pointer to work on.

pthread_join() waits for a given thread and then frees system resources.

pthread_detach() changes termination behavior so that resources are freed as soon as the new thread terminates. Joining is then undefined.

Example

#include <stdio.h>
#include <stdlib.h>
#include <errno.h>
#include <unistd.h>
#include <pthread.h>

#define PERROR_AND_EXIT(M) do { perror(M); exit(EXIT_FAILURE); } while(0)
#define CHECKED_PTHREAD(C) do { int ret = (C); if (ret) { errno = ret; PERROR_AND_EXIT(#C); } } while(0)

void *worker(void *arg)
{
    printf("worker\n");
    sleep(3);
    static int ret_value = 123;
    return &ret_value;
}

int main()
{
    pthread_t thread;
    CHECKED_PTHREAD(pthread_create(&thread, NULL, worker, NULL));
    printf("main\n");
    static void *retval;
    CHECKED_PTHREAD(pthread_join(thread, &retval));
    printf("worker retval = %d\n", *((int*)retval));
    exit(EXIT_SUCCESS);
}

Inter Process Communication

In order to facilitate communication between processes, glibc provides many POSIX functions that allow such communication.

POSIX Signals

Any proccess can send any signal to another process. A process can decide whether to respond with a default action, with an event handler or just ignore the signal entirely.

Signal	Default action	Description
SIGINT	Terminate	Ctrl-C interrupt
SIGQUIT	Core dump	Ctrl-\ quit
SIGABRT	Core dump	Abort signal from `abort()` or `assert()`
SIGKILL	Terminate	Kill
SIGSEGV	Core dump	Illegal memory access
SIGALRM	Terminate	Timer ran out from `alarm()`
SIGTERM	Terminate	Terminate
SIGSTOP	Stop process	Stop process
SIGCONT	Reactivate process	Reactivate process

kill() sends a signal to a process
pause() blocks until the process is killed or any signal is received
sigaction() registers a signal handler
sigfillset() returns a sigset_t to specify which signals to block while the handler is being run
raise() sends a signal to the own process

sigaction example

// set action handler
struct sigaction a = { 0 };
a.sa_flags = SA_SIGINFO;
a.sa_sigaction = handler;
sigfillset(&a.sa_mask);
sigaction(sig, &a, NULL);

POSIX Pipes

Pipes are first in, first out data buffers with a maximum size. File descriptors are used to communicate current access to the OS. Pipes are also always synchronous.

pipe(int[2]) followed by fork() creates an anonymouse pipe and mkfifo() creates a named pipe which acts like a file.

Anonymous pipe example

#include <sys/types.h>
#include <unistd.h>
...
    int fd[2];
    pipe(fd);
    pid_t cpid = fork();
    ...
    if (cpid > 0) { // still in parent process: read from pipe
        close(fd[1]); // close write-file-descriptor
        read(fd[0], ...); // use read-file-descriptor
        ...
    } else { // in child process: write to pipe
        close(fd[0]); // close read-file-descriptor
        write(fd[1], ...); // use write-file-descriptor
    }
...

Anonymous Pipes

Anonymous pipes are also unidirectional. For bidirection communication, two pipes are needed.

pipe() opens two file descriptors. A process can only use one of these descriptors
close() closes a descriptor
read() reads from pipe (blocking)
write() writes to pipe (blocking)

Using fcntl() makes a pipe non-blocking

void set_nonblocking(int fd) {
    int flags = fcntl(fd, F_GETFL, 0);
    if (flags == -1) PERROR_AND_EXIT("fcntl");
    if (fcntl(fd, F_SETFL, flags | O_NONBLOCK) == -1) PERROR_AND_EXIT("fcntl");
}
...
int pfd[2];
if (pipe(pfd) == -1) PERROR_AND_EXIT("pipe");
set_nonblocking(pfd[0]); // set reading file descriptor to non-blocking
...

This results in some extra conditions having to be checked

int n = read(pfd[0], buf, MSGSIZE);
if (n > 0) { ... } // use received data
else if (n == 0) { ... } // close and stop polling
else if (errno == EAGAIN) { ... } // has to wait for poll interval - avoid spin-lock
else { ... } // real error

Named Pipes

Can be created within the shell: mkfifo [path] -m [access mode]. Blocks until both sides are open.

In C, mkfifo() is used and functions like a file.

POSIX Message Queues

Queues have a maximum number of messages and a maximum size in bytes, reperesented by the struct mq_attr. Multiple processes can read from and write to a message queue. Reading consumes a message. Names must also always start with a /. By default, queues exist in /dev/mqueue.

Important: Message Queues functions are part of librt.a so the needs the fla -lrt.

Example

#include <mqueue.h>
#include <stdlib.h>
#include <stdio.h>
#include <errno.h>
#include <unistd.h>
#include <sys/wait.h>

#define PERROR_AND_EXIT(M) do { perror(M); exit(EXIT_FAILURE); } while(0)
#define QNAME "/demo" // the name must start with a slash
#define MSIZE 10

int main() {
    int q = 0, cpid = 0, n = 0, wpid = 0;
    struct mq_attr a = { .mq_maxmsg = 10, .mq_msgsize = MSIZE };
    if ((q = mq_open(QNAME, O_CREAT|O_RDWR|O_NONBLOCK|O_EXCL, 0666, &a)) == -1) PERROR_AND_EXIT("mq_open");
    if ((cpid = fork()) == -1) PERROR_AND_EXIT("fork");

    if (cpid > 0) { // parent: shares queue descriptor with child
        if (mq_unlink(QNAME) == -1) PERROR_AND_EXIT("mq_unlink"); // remove it from the filesystem again
        char msg[MSIZE+1]; // buffer allows for final '\0' to allow interpretation as string

        while(wpid == 0) { // read messages while the child process has not yet terminated
            sleep(1); // poll interval for non-blocking mq_receive() and non-blocking waitpid()
            while ((n = mq_receive(q, msg, MSIZE, NULL)) > 0) { // read while there are messages
                msg[n] = '\0'; // prepare for printf
                printf("Message: '%s'\n", msg);
            }
            if (n == -1 && errno != EAGAIN) PERROR_AND_EXIT("mq_receive"); // non-blocking read handling
            if ((wpid = waitpid(cpid, NULL, WNOHANG)) == -1) PERROR_AND_EXIT("waitpid"); // non-blocking
        }
        if (mq_close(q) == -1) PERROR_AND_EXIT("mq_close"); // close when completed
    } else { // child: shares queue descriptor with parent
        if (mq_send(q, "Hello", sizeof("Hello"), 1) == -1) PERROR_AND_EXIT("mq_send");
        sleep(2);
        if (mq_send(q, "Queue", sizeof("Queue"), 1) == -1) PERROR_AND_EXIT("mq_send");
    }
}

POSIX Sockets

Logically connect to processes with a socket. Abstracts all necessary system needed to actually make such a connection.

Usual client process:

Define socket
Request connection to server
Exchange data
Close socket

Usual server process:

Define socket
Wait for connection
Accept or reject connection
Exchange data
Close socket

For non-connection-oriented connections the same happens except no connection requests are exchanged.

Synchronization

This part highlights the most common synchronization methods used in C.

Mutual exclusion

Mutexes in C are very simple. Trying to lock a mutex that is already locked results in blocking behavior until that mutex is released. A recursive option can also be given that allows a function to lock and unlock a mutex multiple times.

Recursive example

#include <sys/types.h>
#include <pthread.h>
#include <stdlib.h>
#include <unistd.h>
#include <stdio.h>
#include <errno.h>

#define FATAL(M) do { perror(M); exit(EXIT_FAILURE); } while(0)
#define N 10000000
#define MUTEXATTR PTHREAD_MUTEX_RECURSIVE

pthread_mutexattr_t mutex_attr;
pthread_mutex_t mutex;
int value = 0;

void calc(int step)
{
    if (pthread_mutex_lock(&mutex) != 0) FATAL("inner lock");
    value += step;
    if (pthread_mutex_unlock(&mutex) != 0) FATAL("inner unlock");
}

void *count(void *p)
{
    for(int i = 0; i < N; i++) {
        if (pthread_mutex_lock(&mutex) != 0) FATAL("lock");
        calc(*(int*)p);
        if (pthread_mutex_unlock(&mutex) != 0) FATAL("unlock");
    }
}

int main(void)
{
    if (pthread_mutexattr_init(&mutex_attr) != 0) FATAL("mutexattr_init");
    if (pthread_mutexattr_settype(&mutex_attr, MUTEXATTR) != 0) FATAL("mutexattr_set");
    if (pthread_mutex_init(&mutex, &mutex_attr) != 0) FATAL("mutex_init");
    pthread_t th_inc;
    pthread_t th_dec;
    int inc = +1;
    int dec = -1;
    if (pthread_create(&th_inc, NULL, count, &inc) != 0) FATAL("create");
    if (pthread_create(&th_dec, NULL, count, &dec) != 0) FATAL("create");
    if (pthread_join(th_inc, NULL) != 0) FATAL("join");
    if (pthread_join(th_dec, NULL) != 0) FATAL("join");
    if (value != 0) fprintf(stderr, "ERROR: exp=%d, act=%d\n", 0, value);
}

Semaphores

A semaphore is essentially a street light for threads. sem_init sets the initial value. sem_post decrement said value or block if that value is 0. sem_wait increases that value if sem_post was called earlier.

Semaphore example

#include <sys/types.h>
#include <pthread.h>
#include <stdlib.h>
#include <unistd.h>
#include <stdio.h>
#include <limits.h>
#include <semaphore.h>

#define FATAL(M) do { perror(M); exit(EXIT_FAILURE); } while(0)
#define CHECK(E,A,M) if((E)==(A));else fprintf(stderr,"ERROR: "M": exp=%d, act=%d\n",E,A)
#define N 10000

volatile int array[N] = { 0 }; // shared variable: init in one thread, then use in both
sem_t sem;

void *min(void *arg) // initialize the data and calculate min value of all
{
    for(int i = 0; i < N; i++) array[i] = i - N/2; // init the shared data -N/2...N-1-N/2
    if (sem_post(&sem) == -1) FATAL("post");
    int value = INT_MAX;
    for(int i = 0; i < N; i++) if (value > array[i]) value = array[i];
    CHECK(-N/2, value, "wrong min value");
    return NULL;
}

void *max(void *arg) // calculate max value of already initialized data
{
    if (sem_wait(&sem) == -1) FATAL("wait");
    int value = INT_MIN;
    for(int i = 0; i < N; i++) if (value < array[i]) value = array[i];
    CHECK(N-1-N/2, value, "wrong max value");
    return NULL;
}

int main(void)
{
    if (sem_init(&sem, 0, 0) == -1) FATAL("sem");
    pthread_t th_max;
    pthread_t th_min;
    if (pthread_create(&th_max, NULL, max, NULL) != 0) FATAL("create");
    if (pthread_create(&th_min, NULL, min, NULL) != 0) FATAL("create");
    if (pthread_join(th_max, NULL) != 0) FATAL("join");
    if (pthread_join(th_min, NULL) != 0) FATAL("join");
}

Semaphores can exist in memory or as files.

Examples

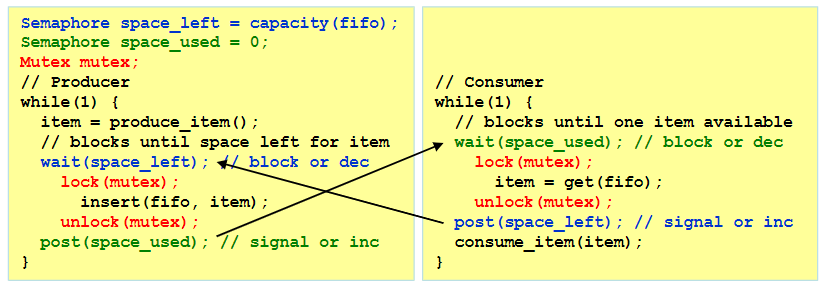

Producer-Consumer Problem

Producer-Consumer

Reader-Writer Problem

Allow multiple readers but only one writer.

Reader-Writer

Keywords	Bytes	Numeric range
`[signed] char`	1	\(-128\) to \(127\)
`[signed] int`	4	\(-2^{31}\) to \(2^{31}-1\)
`float`	4	\(-3.410^{38}\) to \(3.410^{38}\)
`double`	8	\(-1.7910^{308}\) to \(1.7910^{308}\)

`unsigned char`	1	\(0\) to \(255\)
`[signed] short [int]`	2	\(-32768\) to \(32767\)
`unsigned short [int]`	2	\(0\) to \(65535\)
`unsigned [int]`	4	\(0\) to \(2^{32}-1\)
`[signed] long [int]`	8	\(-2^{63}\) to \(2^{31}-1\)
`[signed] long long [int]`	8	\(-2^{63}\) to \(2^{31}-1\)
`unsigned long [int]`	8	\(0\) to \(2^{64}-1\)
`unsigned long long [int]`	8	\(0\) to \(2^{64}-1\)

`long double`	10	\(-1.210^{4932}\) to \(1.210^{4932}\)
