I²C

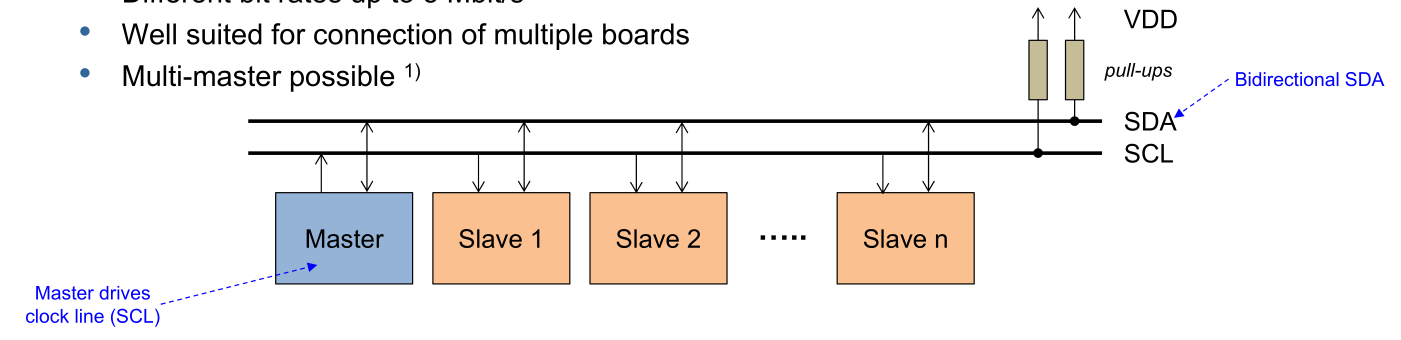

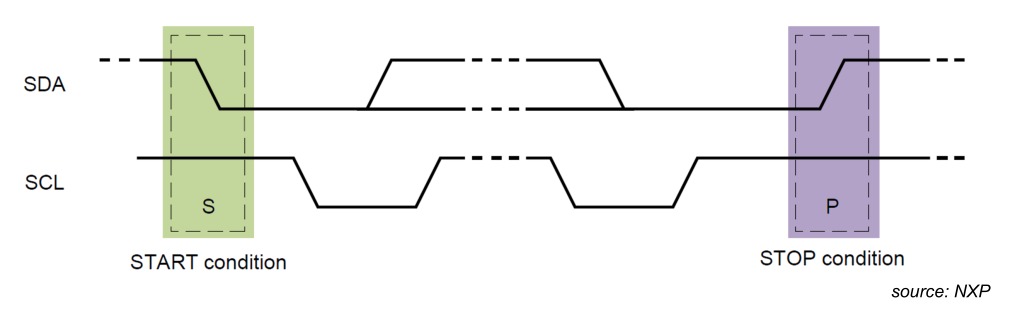

Start and Stop

The master initiates a transaction with a falling edge on SDA while the clock signal SCL is high. The transaction is ended with a rising edge on the data line SDA when the clock SCL is high.

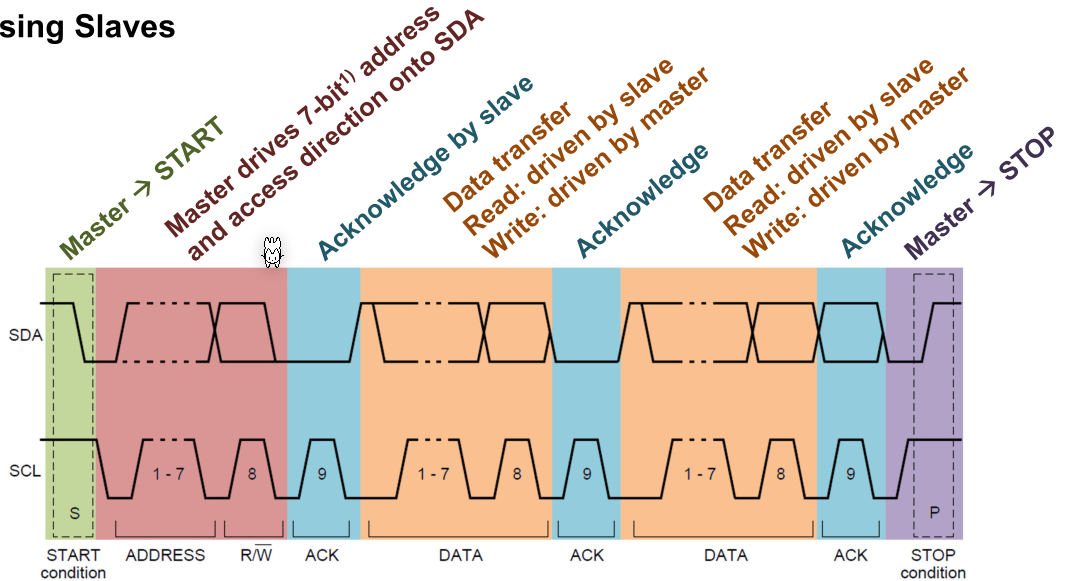

Addressing

The first 7bits when starting a transaction is the address of the slave.

Bits	Content	Sent By
0-7	Address send of slave (MSB is sent first)	Master
8	1 = the master reads, 0 the master writes	Master
9	ACK by slave	Slave

If the master wants to check if there is a slave with a given address, then the master can start a transaction and see if there is an acknowledgement.

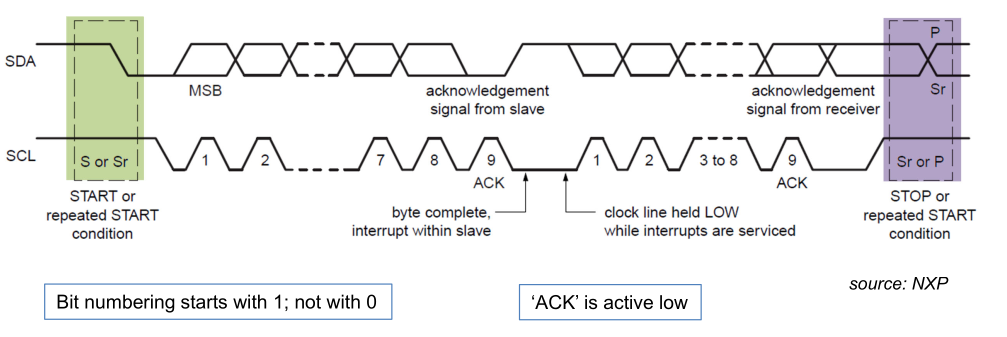

Data

The MSB is sent first, meaning that the Data doesn't need to be flipped (other than with UART)

While transmitting data, SDA only changes while the clock SCL is low. When the clock signal is high, SDA does not change, except when sending the start and stop condition.

When a byte is complete, then the slave pulls the line down. If nobody acknowledges the transaction, then no slave will pull down the line and will stay up.

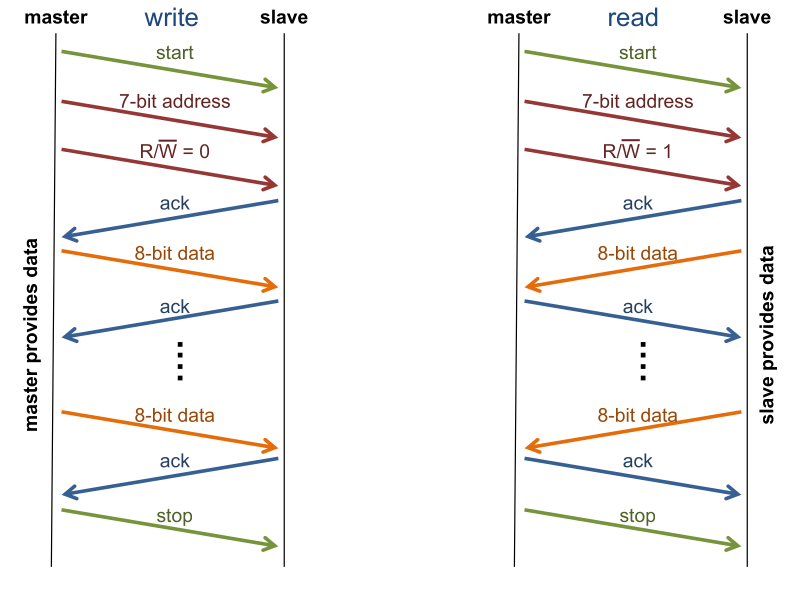

The following diagrams show a read and write transaction.

When reading from a slave, the slave can never send data after a stop signal has been sent by the master. This is because the stop condition is sent when the clock signal is high.

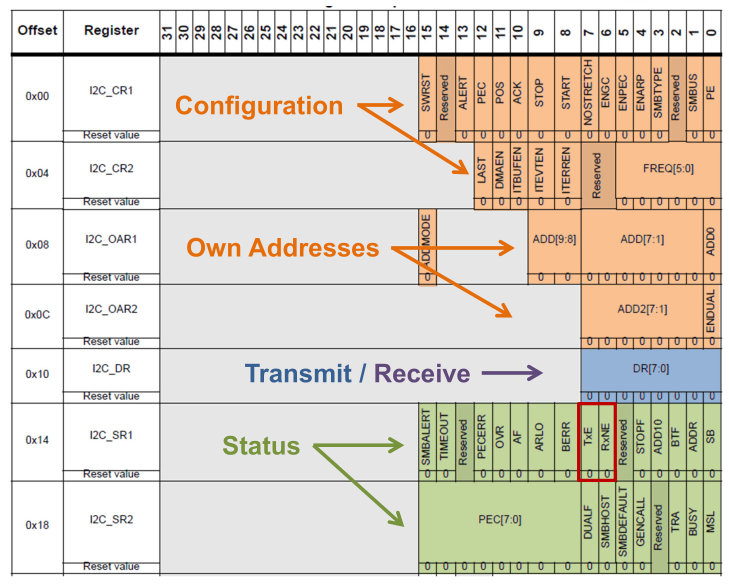

STM32F4xxx
