Networking

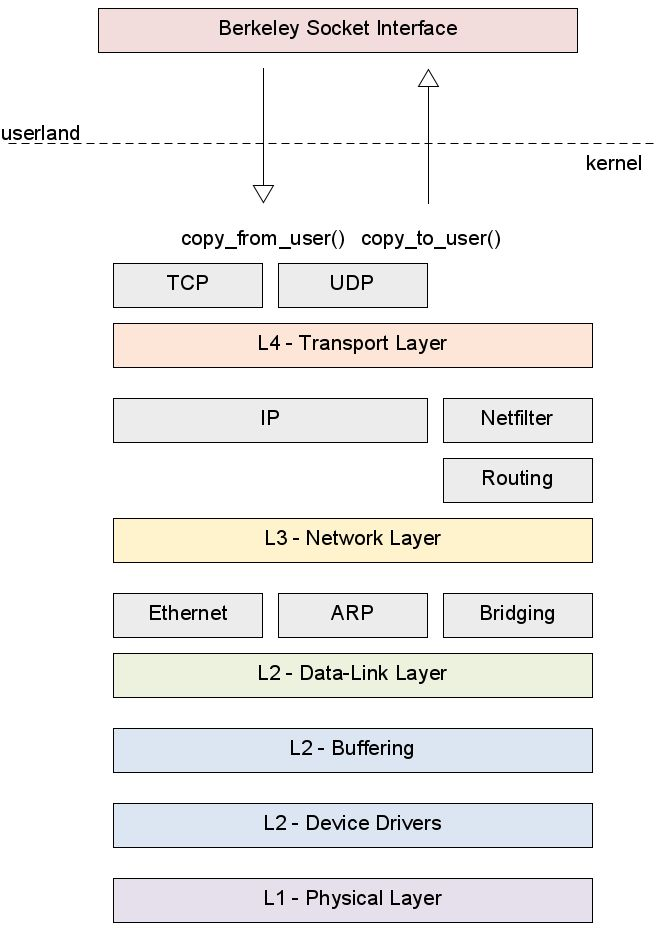

image-20230526083608492

OSI-Layers

Layer 1 - Physical Layer

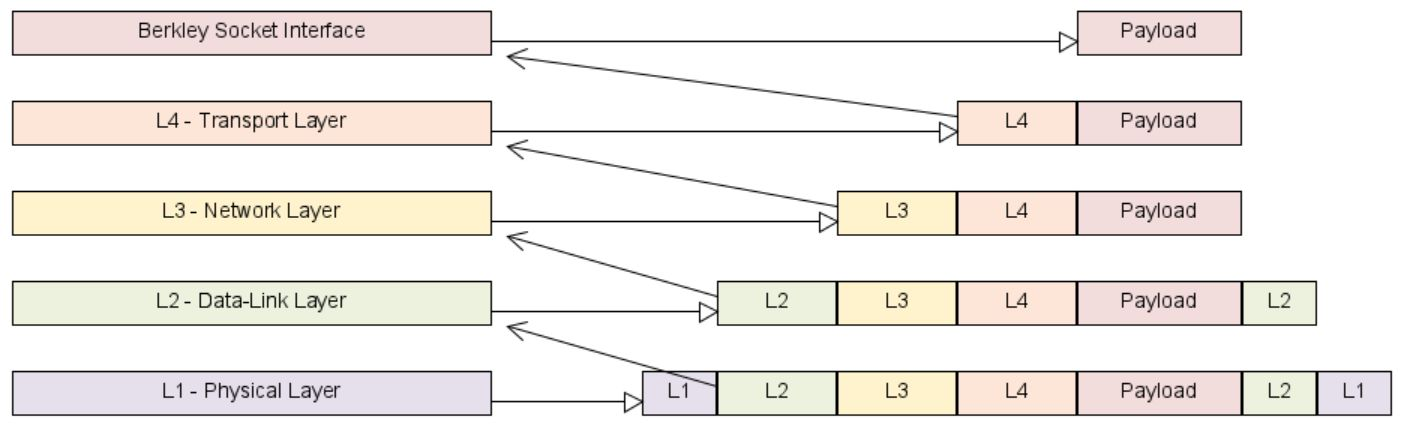

The following is how a naive network stack would implement the layering.

image-20230526085216011

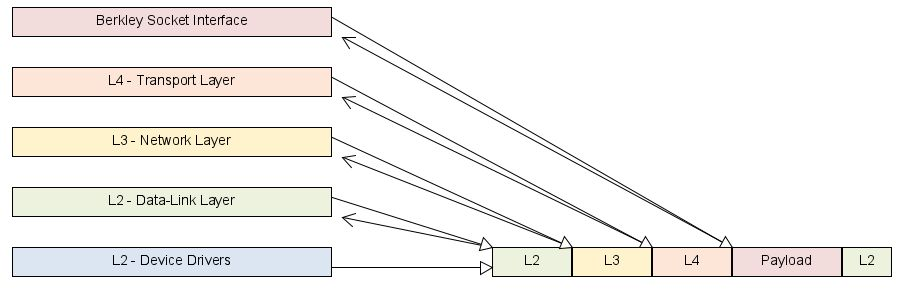

A much smarter approach is to give the upper layer just a memory pointer to content instead of copying the entire frames. This is also called a zero-copy stack.

image-20230526085317396

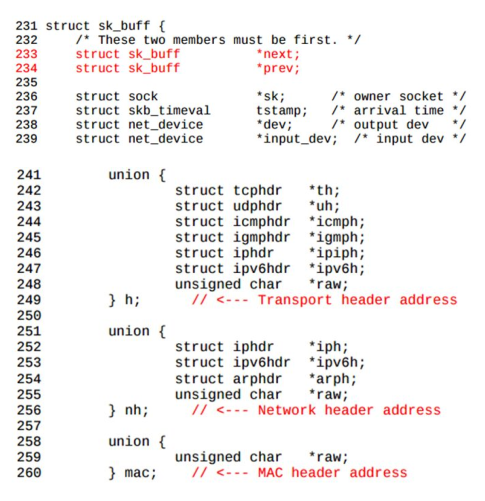

Linux defines the struct sk_buff to store the network frames. To do the actual sharing DMA is used.

image-20230526085822727

The following diagram shows how the data travels from the NIC to the application.

image-20230526085959085

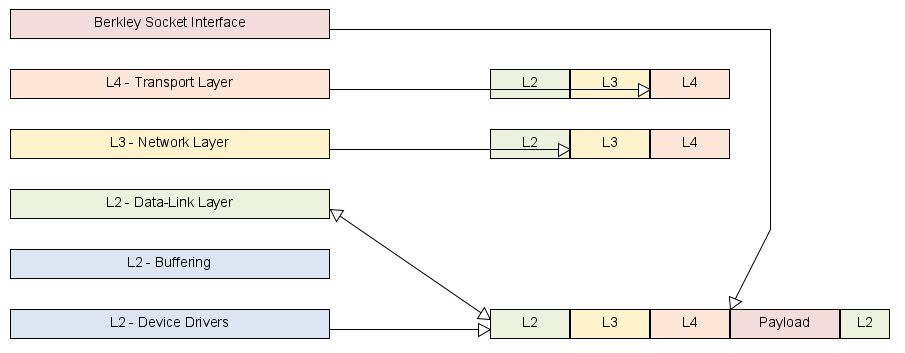

The following is how Linux actually implements the ip stack. The payload isn't copied. However, the headers are copied, since layers sometimes modify the headers (e.g. TTL in IP).

image-20230526090456315

Things like ARP, and briding is implemented in the kernel.

image-20230526090740590

Layer 3 - Networking Layer

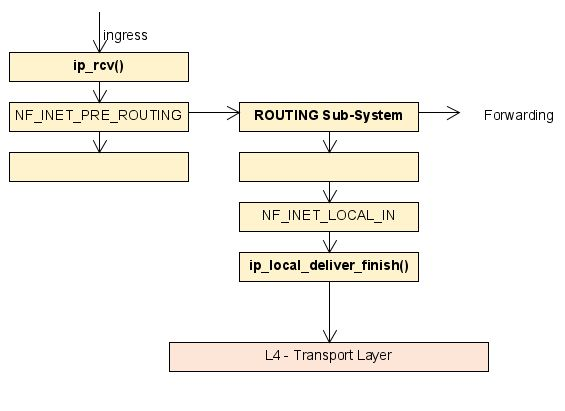

image-20230526092343386

The diagram above shows how an IP packet flows through netfilter...

Layer 4 - Transport Layer

  • Flow-Control: That the receiver doesn't get overwhelmed (e.g. when the receiver is a raspberry pi)
  • Congestion-Control: That the network itself doesn't get overwhelmed (e.g. when a router is a raspberry pi)

Netfilters a

What is trafic engineering?

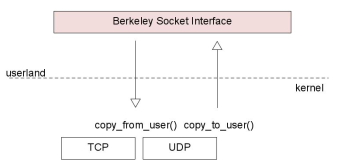

Layer 7 - Application Layer

image-20230526093624072

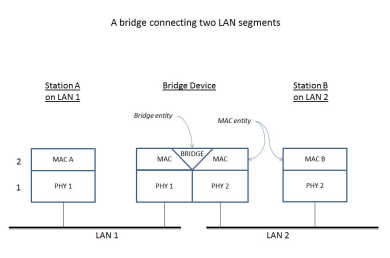

Layer 2 Briding

image-20230526090907820

Netfilter

Netfilter structures how a frame traverses layer 2 and lever 3.
