Operation

A service fulfils the request of a client through discoverable endpoints of an encapsulated implementation described by a well-defined interface with a uniform messaging protocol plus respective information model.

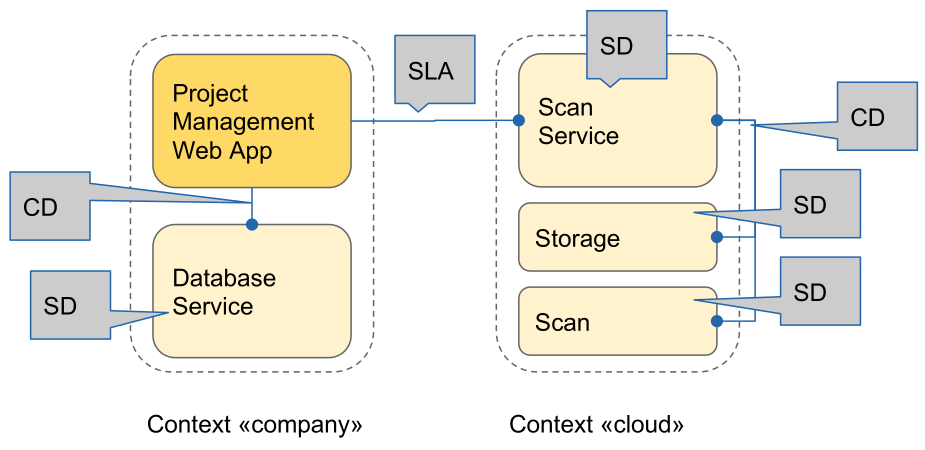

The following diagram is an example with composite services:

image-20240515091730236

SLA: Service Level Agreement (legal terms, rights & obligations); SD: Service Description; CD: Composition Description (technical binding between multiple services or application parts)

The following is a service description:

{
    "services":[
        {
            "id":"766fa866-a950-4b12-adff-c11fa4cf8fdc",
            "name":"cloudamqp",
            "description":"Managed HA RabbitMQ servers",
            "requires":[],
            "tags":[ "amqp", "rabbitmq", "messaging" ],
            "bindable": true,
            // can be bound to app
            "metadata":{
                // infos displayed in Catalog
                "displayName":"CloudAMQP",
                "imageUrl":"https://example.com/amqp.png",
                "longDescription":"Managed, highly available,
                RabbitMQ clusters",
                "providerDisplayName":"84codes AB",
                "documentationUrl":"http://www…./....html",
                "supportUrl":"http://www.cloudamqp.com/support.html"
            },
            "plan_updateable": true, // can up/downgrade plan
            "plans":[
                {
                    "id":"024f3452-67f8-40bc-a724-a20c4ea24b1c",
                    "name":"bunny",
                    "description":"A mid-sized plan",
                    "free": "false"
                    "metadata":{
                    "bullets":[
                        "20 GB of messages",
                        "20 connections"
                    ],
                    "costs":[{
                        "amount": { "usd":99.0 },
                        "unit":"MONTHLY"
                    },{
                        "amount":{ "usd":0.99 },
                        "unit":"1GB of messages over 20GB"
                    }],
                    "displayName":"Big Bunny"
                }
            ]
        },
        ...
    ]
}

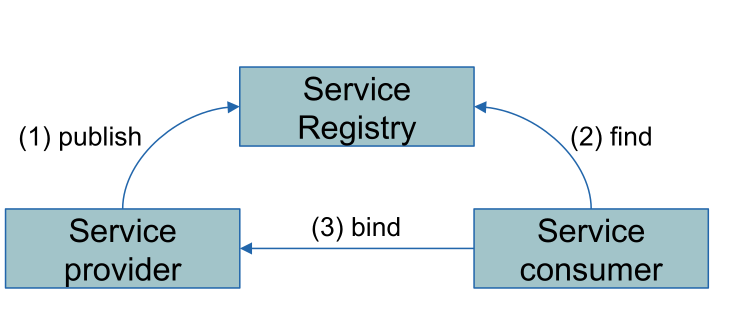

Service Registry

image-20240612160456984

A service publishing means that it registers itself with the registry and notifies the registry what it is. On the other side, when a consumer tries to find a server, it asks the registry. Then, once a specific service has been found, the consumer binds to the provider directly.

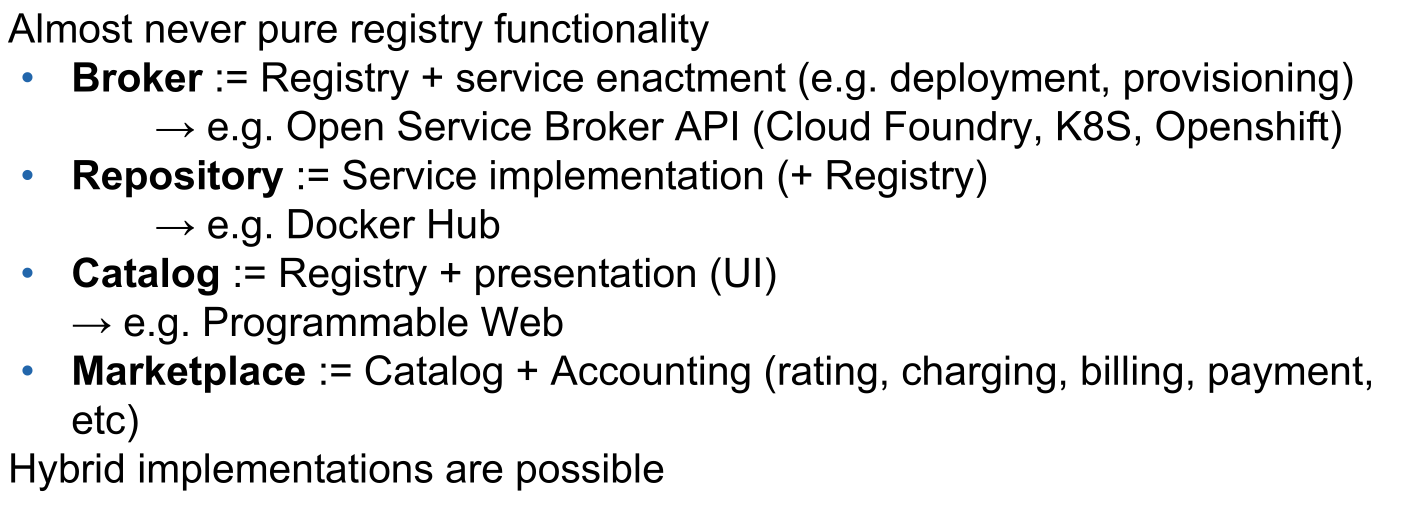

However, in practice, a service registry is rarely just a registry.

image-20240515092429481

Brokers can be implemented on a global level (globally accessible), provider level (only accessible within a platform, like azure) or tenant level (only accessible from within the company).

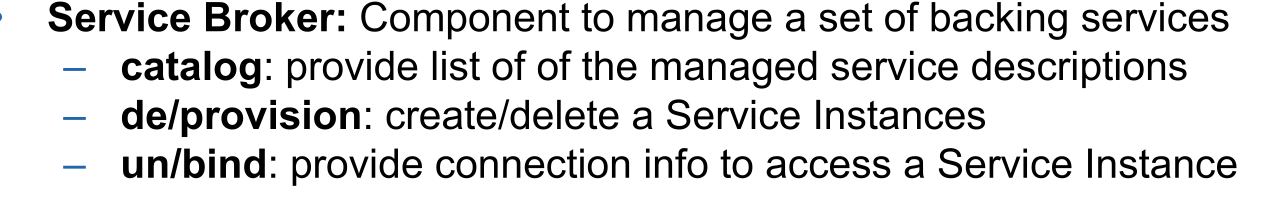

Open Service Broker API (OSB)

This API standardises how services can be found and bound.

image-20240515093744180

Provisioning and binding are two actions, since it is possible to bind a service to multiple other services (e.g. a database which multiple applications connect to).

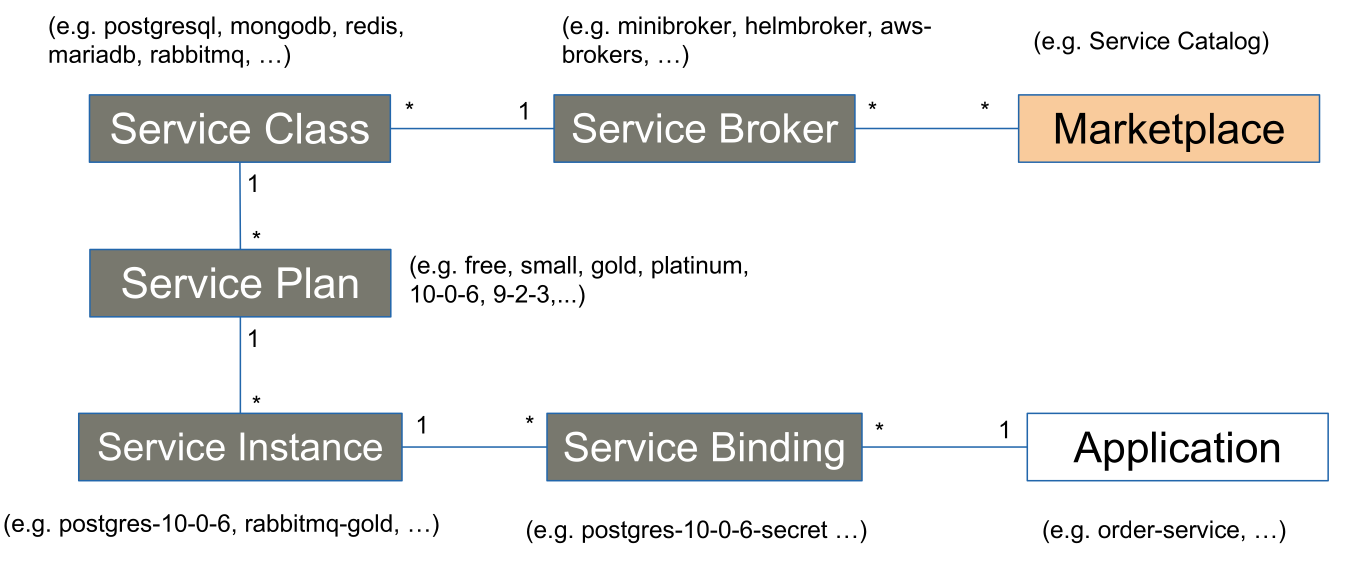

The following shows a system diagram:

image-20240612161050532

  • Marketplace Manages the services
  • Service Broker Manages the associated services (helmbroker, aws-broker, ...). A service broker can be associated with multiple marketplaces, and reversely, a marketplace supports multiple service brokers.
  • Service Class A service implementation providing a functionality (e.g. postgresql, redis, ...)
  • Service Instance A specific instance of a service class with a specific service plan
  • Service Binding The glue between an application and a service instance

Kubernetes Operators

Operators are software extension of Kubernetes that formalise and automate operational know how.

This is done (motivation) to capture the know how of a human operator, formalise this in a configuration and build an automation around it.

Examples of operators are:

  • Operation of Infrastructure, like storage- and network-services
  • Operation of Services (provisioning, scale, monitor, backup, ...), like db-clusters or message-brokers
  • Operation of Applications (Provisioning, Health, Scaling, Migration, ...)
  • Operation of Data Processing (collect, transform, publish, ...)
  • Operation of Security (Create/Renew Credentials, certificates, ...)

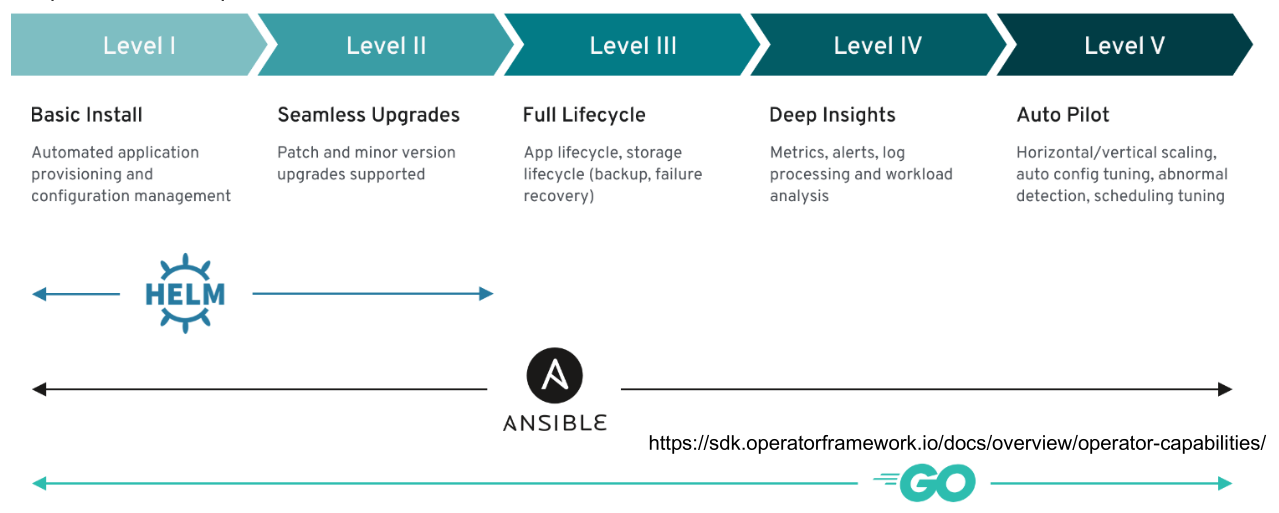

Operators come in different levels, depending on their capabilities.

image-20240612170929624

This can be accomplished with custom resource definitions (CRD) and custom controllers, which act on the CRDs.

The following is an example of a CRD:

apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: shirts.stable.example.com
spec:
group: stable.example.com
scope: Namespaced
  names:
    plural: shirts
    singular: shirt
    kind: Shirt
  versions:
  - name: v1
    served: true
    storage: true
    schema:
      openAPIV3Schema:
        type: object
        properties:
          spec:
          type: object
          properties:
            color:
              type: string
            size:
              type: string
    selectableFields:
    - jsonPath: .spec.color
    - jsonPath: .spec.size
    additionalPrinterColumns:
    - jsonPath: .spec.color
      name: Color
      type: string
    - jsonPath: .spec.size
      name: Size
      type: string
---
apiVersion: shirts.stable.example.com
kind: Shirt
metadata:
  name: myShirt
spec:
  color: blue
  size: XL

Custom Controller

A controller's job is to mitigate the difference between the current and the desired state in a control-loop.

image-20240612170854465

Deployment

  • Feature flags / toggles
  • Seamless deployment
  • Blue-Green deployment
  • Canary deployment (& Rolling update)
  • State transition / migration

Feature Flags / Toggles

New software features are deployed to production and then enabled at runtime based on the configuration.

Typically feature flags are dynamically configurable during runtime. Furthermore, if one feature is toggled, its hierarchy of toggles should all be enabled. This is useful for features which are dependent on each other. Finally, a feature might depend on context (e.g. user, role, environment, ...).

A feature might be enabled based on a few strategies:

  • users / roles
    Maybe used for test users, A/B tests
  • clients
    Useful for IP based, web-/mobile-/fat-client
  • instances
    canary deployment
  • geo-locations
    coordinated roll-out
  • data-scheme / API versions
    seamless migrations

A simple feature flag implementation might look like this:

// Configuration class
public class FeatureToggleConfig {
    private Map<String, Boolean> featureConfig = new HashMap<>();
    public void setFeature(String name, boolean enabled) {
        featureConfig.set(name, enabled);
    }
    public boolean isFeatureEnabled(name){
        return featureConfig.get(name);
    }
}
// Usage in production code
public Spline[] reticulateSplines() {
    if(toggleConfig.isFeatureEnabled("use-new-SR-algorithm")) {
        return enhancedSplineReticulation();
    } else {
        return oldFashionedSplineReticulation();
    }
}

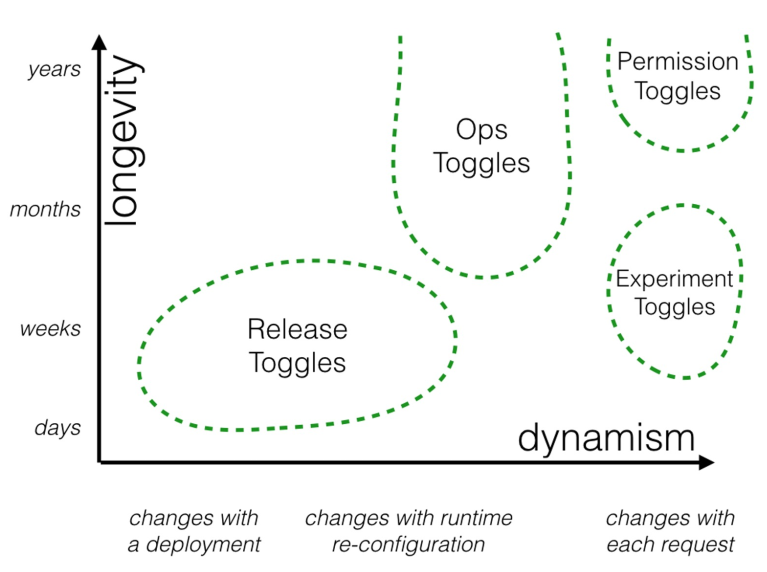

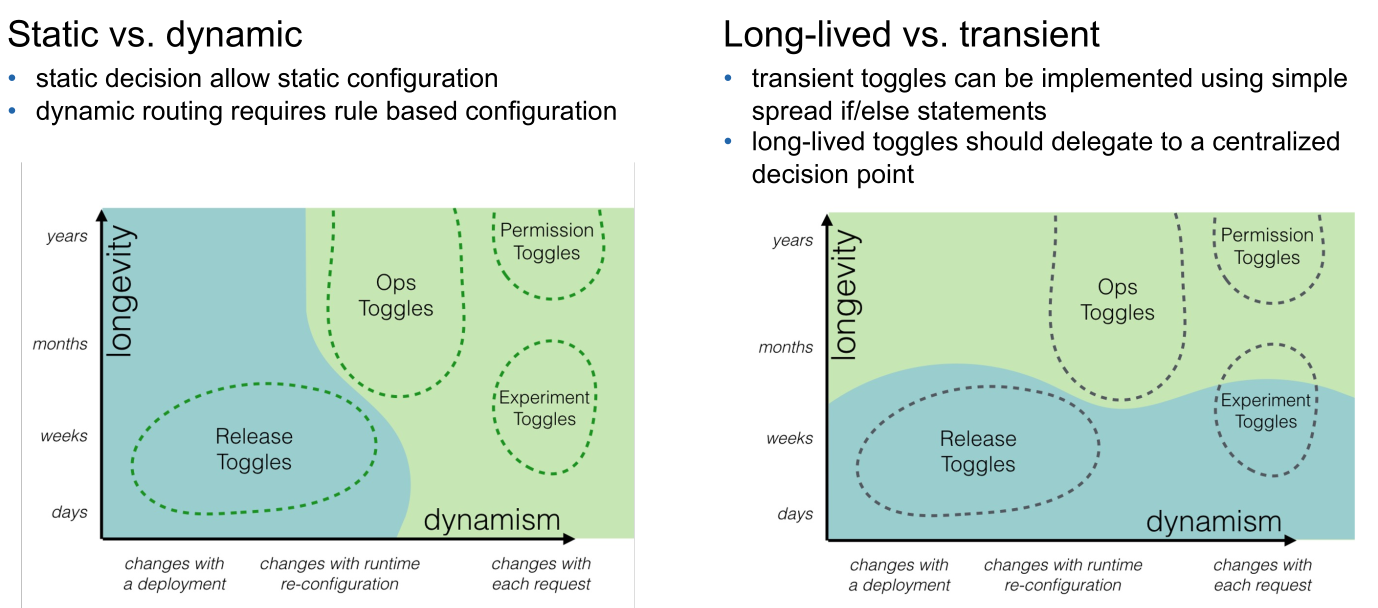

Categories of Toggles

  • Release Toggles
    Deploy app with new features and then enable them eventually. These toggles are (usually) transitionary and can be removed, once all services migrated to the new feature
  • Experiment Toggles
    Enables experimental features and is often used in conjunction with A/B testing. Usually, these are also transitional and should be removed once the a given version is chosen.
  • Ops Toggles
    These are used to control operational aspects (e.g. system outage, deactivate certain functionalities, maintenance mode). Some are transitional, some are long-living.
  • Permission Toggles
    They are used to enable features for a certain group of people (alpha / beta testers, or internal / external users). These are often long living and dynamic.

image-20240522082717184

image-20240522082824395

Configuration Server

A central server, which is contacted by the services, which serves the configuration. The config might be store in a git repository, and is versioned. This allows for great flexibility.

Seamless Deployment

This usually requires multiple releases running in parallel.

Blue-Green Deployment

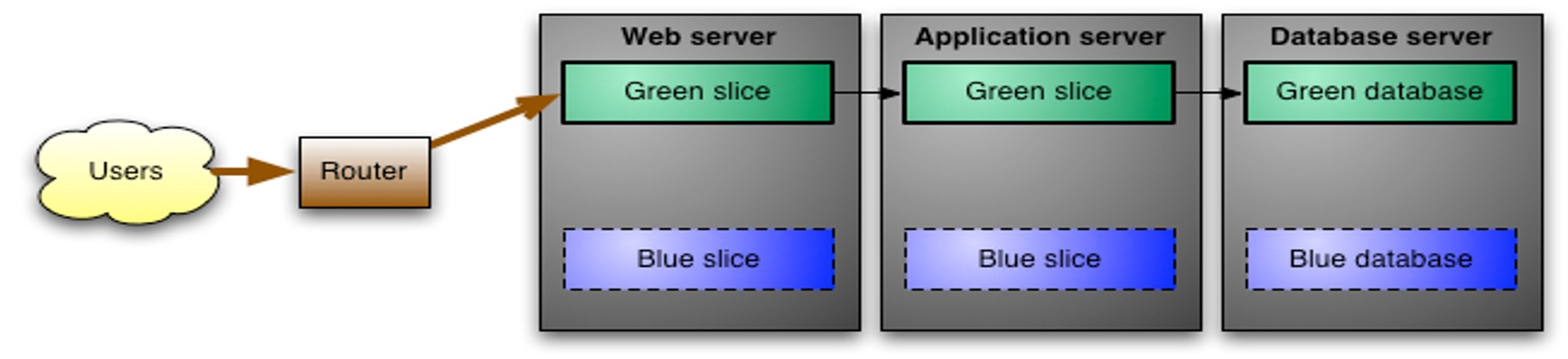

image-20240522083237530

In this model, there are two identical environments (blue and green) running. One environment is running the current productive application. If one wants to migrate to the next release, the new release is deployed to the other environment. Once the app has been deployed, smoke tests can be done. After which, with a switch, all requests can be switched over to the new environment. If something went wrong, the switch can be flicked back.

The two environments alternate, which is the hot one, every release.

The advantage is that there is ever only one release active. This leads to less inconsistencies between multiple requests. On the other hand, it requires more resource, since two duplicate production environments are required.

Problems can arise from the db. While two separate DBs can be synced fairly easily, in this scenario, they might have different schemas.

Canary Deployment (& Rolling Update)

In this model, users are switched over to the new release gradually. This allows to first monitor the new version, while potential bugs only affect a few users.

Advantages are that early roll back is possible with only a small number of people affected. Additionally, A/B testing can be done by routing some users to the new release and some to the old release. It's also possible to check if the application meets the capacity requirements gradually. Finally, it is less resource hungry than blue-green deployment.

The disadvantages are that it is harder to manage and imposes further constraints on compatibility between releases with regards to data model migration.

Rolling updates (used by kubernetes) is a simplified version of the canary deployment model. Here, a fixed rollout process with limited monitoring and less control of the process.

Zero-downtime State Transitions

Transitioning from one version to the next with a stateless service is easy.

To be able to migrate the database, without problems, the following has to be considere:

  • Without maintance-window
  • Without lost updates
  • Without performance hit

There are several options:

  • Stop the old app, migrate data, start the new app
    This is not an option for a zero-downtime deployment
  • Reduce app functionality (only allows for reading)
    Switch the app to read only; create a copy of the db; migrate to the new schema, and switch to new version.
    However, this affects the customer.
  • Synchronisation
    Create a copy DB, migrate the schema and run a process which keeps both versions in sync, and then switch the app to the new DB. Furthermore, for rollbacks, this synchronisation has to be bi-directional
    This process is error prone and can be problematic for performance
  • Design the app to allow for migration Plan migrations in several small steps, instead of one large change. Each of those steps needs back and forward compatibility. There are also well-known building blocks for migration steps (see below).
    This needs planning

State Transition Building Blocks

Add a new Property

  1. DB: Add the new property
  2. DB: Pre-set value (NULL, default value, computed)
  3. Code: Read from and write to the new property

Change a Property (Name, Type, Format, ...)

  1. DB: Add new property (no constraints, like not null, to avoid errors from incomplete data during migration)
  2. Code: read from old column, but write to both
  3. DB: copy data from old to new property
    For large datasets, do it in multiple shards.
    Then add the constraints to the new property, since the property is fully operational and should be consistent
  4. Code; read from new property, write to both
  5. DB: delete constraints from old property (for the same reason as in step 1)
  6. Code: read from and write to new property only
  7. DB: Delete the old property

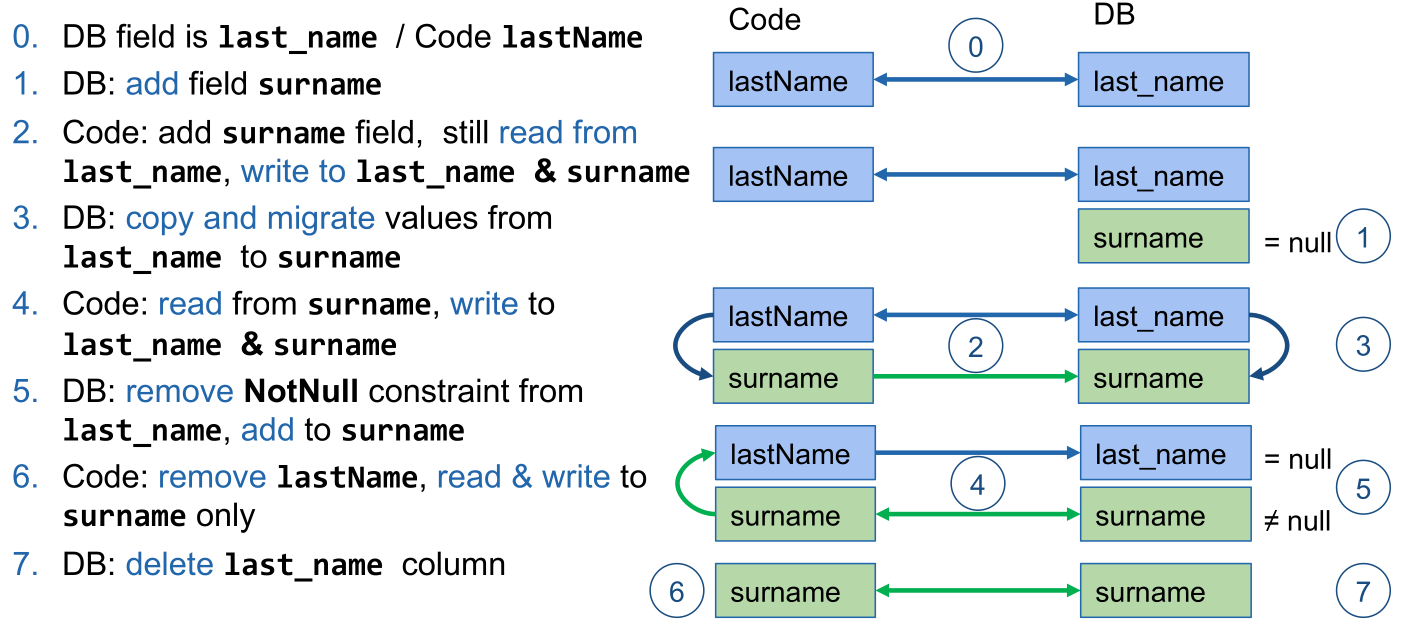

The following is an example of how to rename last_name to surname:

image-20240522091506155

Delete a Property

  1. DON'T, since it is a destructive operation. Rather it should be kept for a retention period
  2. Code: stop reading, but keep writing the property
  3. (After the retention period)
  4. Code: Stop writing the property
  5. DB: Delete the property

More complex Operations

  • Add/Change/Delete A Relation -> Add/Change/Delete a Column
  • Add/Split/Merge/Delete Tables -> Series of Column operations
  • Referential Integrity constraints (NotNull, foreign keys,...) These don't contain business value and are (only) a safety-net to avoid corruption. Therefore, these should be removed before the transition and then be reinstated after the transition.

Best Practice

  • Use migration tools, like flyway or liquibase
    These tools allow for forward and backwards compatibility. Furthermore, the scheme needs to be in version control.

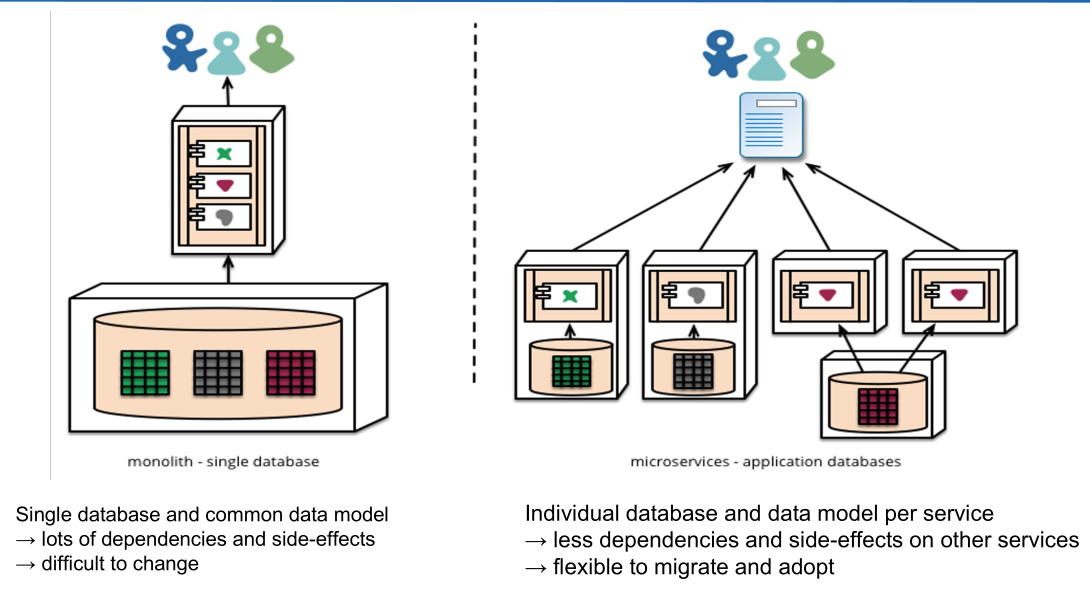

  • Decouple the database
    Simpler data base model per microservice as well as having less dependencies and side effects helps as well. image-20240522092737439
  • Use migration-friendly architectures
    Use Event-Sourcing and CQRS patterns (see CNA lecture (maybe?)), which store the events, instead of the actual data. This allows to (re)create the different view models from the event store
