IR

image-20231006083926701

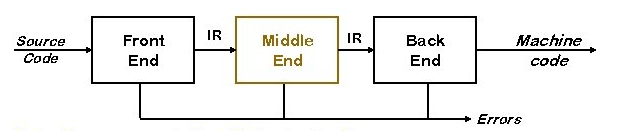

Between all the stages and passes, there is an IR.

Commonly used IRs:

  • AST
  • DAG
  • Stack machine code
  • Three address code
  • Control-flow graph (CFG)
  • Static single assignment (SSA)

There are some common properties:

  • Level of Abstraction: How much above assembly is it (e.g. AST vs linear code)
  • Structural (Graphically vs Linear vs Hybrid)
  • TODO

In general, IRs don't have loops and use GOTO statements to replicate the control-flow.

Usually, over the process of compilation, the abstraction level of the IR lowers.

Abstract Syntax Tree

TODO: Include example of parse tree and AST

Directed Acyclic Graph (DAG)

A DAG is an AST, where expressions can be shared between two trees. It makes sharing explicit and encodes that redundency.

TODO Insert example of AST and DAG

Stack Machine Code

For example, x - 2 * y becomes:

push x
push 2
push y
multiply
subtract

Three Address Code

Every statement has the form x <- y op z and has one operator (op) and, at most, three names (x, y, z).

Example: z <- x - 2 * y

t <- 2 * y
z <- x - t

This introduces new names, which can serve as a jumping of point for further optimisations.

Control-flow Graph

A control-flow graph models how the control flows through the program. It is a graph, where each node is a sequence of straight-line code (with no jumps).

TODO: Insert control-flow graph example

Static Single Assignment (SSA)

The main idea is that each name is defined. To deal with the ambiguity, the \(\phi\)-function is introduce. It marks where a reference can come from multiple variables.

This simplifies the analysis, where a value comes from, since each variable is defined exactly once.

TODO: Add original and SSA-form example

Importantly, the \(\phi\) function is never implemented. Instead the compiler will remove the \(\phi\) function entirely by undoing the translation to SSA.
