TLS (Transport Layer Security)

image-20230424102238314

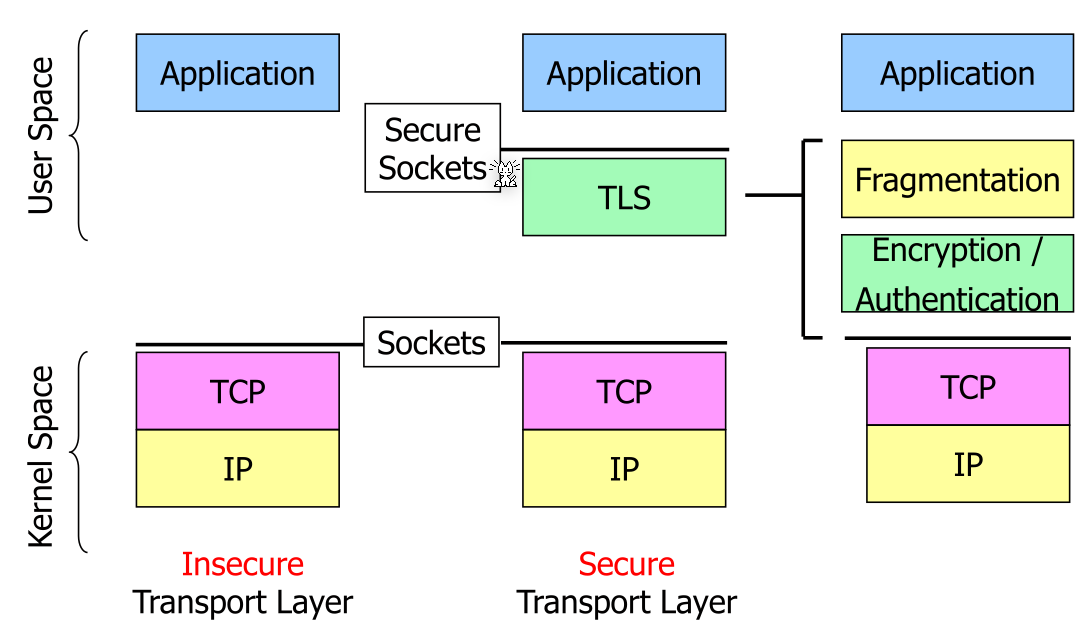

TLS works on top of TCP and can be implemented in user mode. Each application can use their own implementation independent of the OS. Additionally, TLS doesn't has to worry about lost and re-transmitted data, since this is already handled by the TCP.

TLS provides authenticated, integrity-protected and confidential data exchange in addition to disallowing replaying and deleting of messages.

There are numerous usage of TLS in different protocols: HTTPS, POS3S, SMTPS, FTPS (not SFTP which is over SSH), IMAPS, ...

TLS operates in three phases:

  1. Handshake Both party authenticate and exchange cryptographic algorithms and key material
  2. Data Exchange
  3. Connection Tear Down

TLS implements its own fragmentation. This can also be seen in the diagram above.

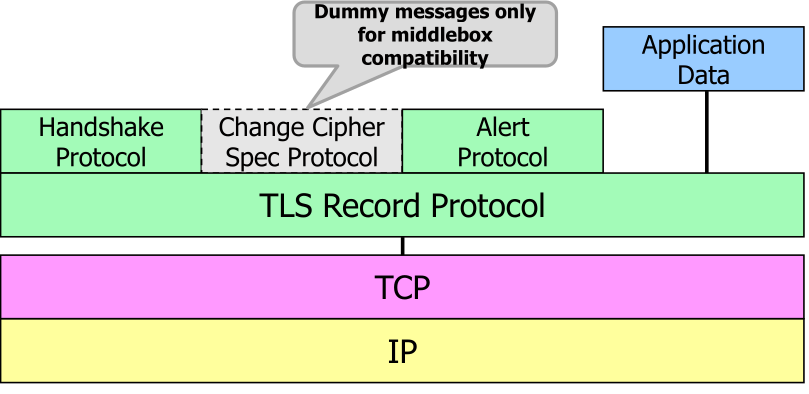

TLS Record

image-20230424102412368

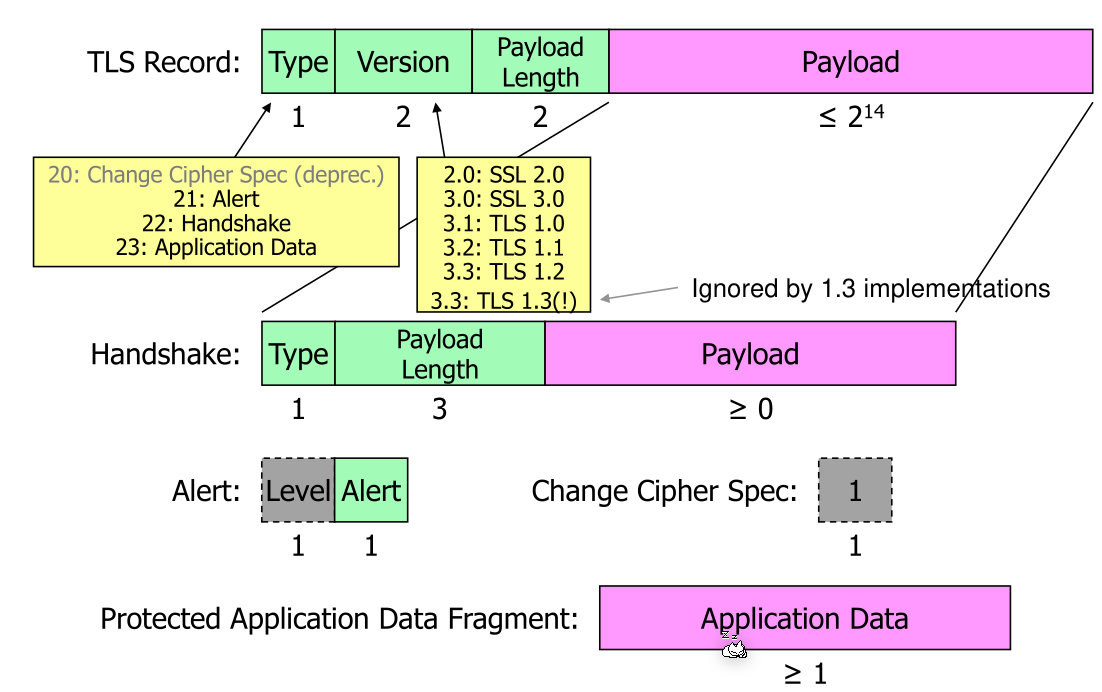

TLS defines multiple "protocols" for different purposes. Each of those protocols send a TLS message in the following format:

image-20230424102542942

The payload can be a handshake package, an alert package or a change cipher spec. TLS 1.3 says it is actually TLS 1.2 to prevent old firewalls to block it. The version field is ignored when using TLS 1.3

TLS Handshake

When the server and client first communicate, neither have a previous association or shared secret. Only the root certificate is known to the client.

To bootstrap the connection, the following steps are executed:

  1. Negotiate the algorithms used
  2. Client and server perform a Diffie-Hellman
  3. Client and Server generate handshake keys
  4. Server authenticates to client
  5. Client and server proof to each other that the previous messages weren't tampered with
  6. Client and server generate data keys

The following messages can be transmitted with only 3 IP datagrams by sending the following:

  1. Client->Server: ClientHello
  2. Server->Client: ServerHello, authentication messages, Finished
  3. Client->Server: Finished

image-20230607223834570

First the used algorithms are negotiated. To do this, the client sends a ClientHello message with the supported TLS versions, encryption algorithms (e.g. AES, 128bit keys, with CGM, and SHA-256 for HKDF), the groups for the Diffie-Hellman key exchange (e.g. X25519, P256, ...). If X25519 or P-256 is supported, the public key of the client are sent as well.

Notable is, that all lists are sorted by the preference of the client, meaning that the server should choose the first algorithm which it also supports.

image-20230607224121319

The server response with a ServerHello which contains the chosen algorithms. For example: TLS 1.3 with "AES 128-bit keys, GCM, SHA-256 for HKDF", X25519 with the following server public key.

Similar, if X25519 or P-256 is used, the public key of the server is sent back.

image-20230607224306099

From this point on all traffic is encrypted.

image-20230607224409053

The server sents back the certificate chain in Certificate, which gets validated by the client.

In CertificateVerify is a signature over the previous handshake messages with the private key of the server certificate. This allows the client to verify that the previously received messages are legit.

By this point, the server is authenticated.

image-20230607224641486

In Finished, the sever sends a hash over all handshake messages. The client does the same and compares. If the hashes match, both have received what the other has sent.

The client sends a hash over all handshake messages which gets checked by the server.

If this passes, both the server and client have proven that the handshakes weren't tampered with.

Afterwards, use the HKDF (hashed based key derivation function) algorithm to derive a data key from the exchanged handshake keys.

TLS Client Authentication

image-20230607225517494

The server can request that the client has to authenticate them self by sending a CertificateRequest during the handshake.

image-20230607225641142

The client response with a Certificate and a CertificateVery message of its own (similar to what the server sends to the client to authenticate itself).

TLS Session Resumption

To reduce the load on a server, a TLS session can be resumed.

image-20230607225814766

After the Finished message, the server may send a NewSessionTicket message, encrypted by the handshake keys. The contents are a preshared key-identifier with which the client can find the preshared key from the last session. Only one session can be opend per NewSessionTicket. However, the server can send multiple NewSessionTickets.

When the client tries to reconnect the next time, the client sends a "Hi, I'd like to talk to you and I have already a pre-shared key with the following id". From the Finished message (sent after ClientHello) on, all messages are encrypted.

image-20230607230248264

The client response with a preshared key identifier itself.

image-20230607230327991

Everything is fine... connection established

Application Data

image-20230424105358173

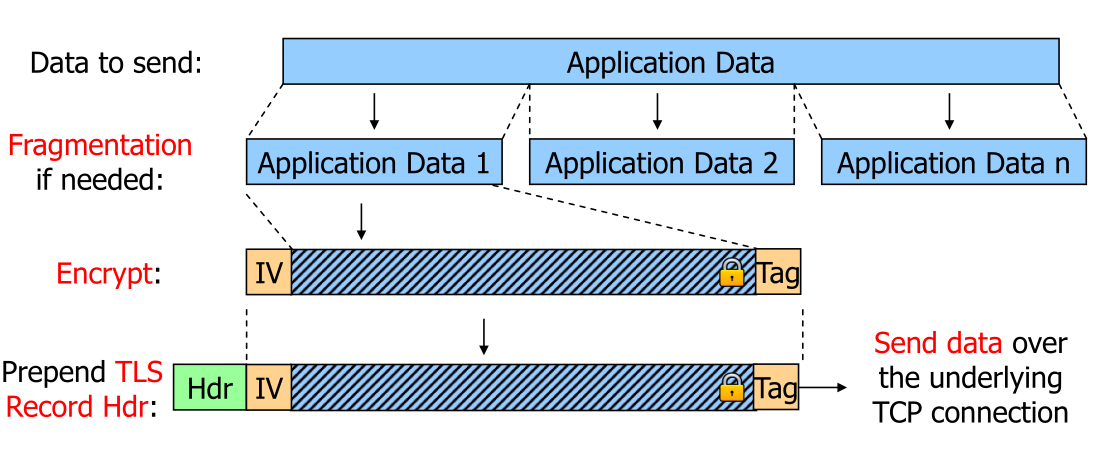

The tag functions as a signature which ensures that no body tampered with the data (by e.g. removing some bytes blindly). Both the server and client count each fragment and the counter (or a sequence number) is an input for the calculation of the tag. The counter itself is not sent. However, the counter is not needed to reorder packages since TCP guarantees that. This mitigates replay attacks.

The fragmentation on TLS level is needed as the client needs the tag to ensure the body is actually valid. This ensures that the client gets the data in a timely fashioned.

TLS Tear Down

To tear down a TLS connection a participant first has to send a close_notification alert which prompts the other side to shutdown the connection. If a participant recievecs a TCP FIN package before the close_notification, the TLS connection was ended uncleanly.

image-20230612111641161

This is done to prevent truncation attacks, where the attacker injects a TCP FIN package to prevent the server or client to send all information. For example a footer on a web page.

Security Analysis

An attacker can only read until the ServerHello package after which all communication is encrypted. However, these packets don't contain anything interesting for the attacker.

However, an attacker can spoof the initial ClientHello to advertise a lower TLS version or insecure ciphers. The server, if missconfigured, might accept an connection with insecure ciphers or an insecure TLS version. This is prevented by the server sending the hash over all handshake messages in the Finish package. The client does the same and compares. If an attacker tampered with messages during transit the client would notice and abort the connection.

A further attack is for an attacker to insert, reorder or delete messages. This is prevented by an counter both the server and client maintain. This counter is included int he calculation of the tag sent with every data TLS record.

DTLS

With DTLS one can use TLS over UDP. Using "normal" TLS over UDP doesn't work as TLS assumes that if packets are duplicated, reordered or don't make it, then this is an attack.

DTLS re-implements TCP's reliability for the handshake (things like re-transmissions and reordering).

For the actual data frames, sequence numbers are in the message itself.
