Basics

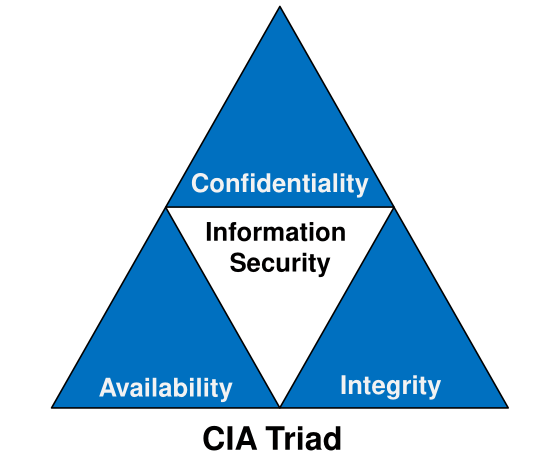

CIA Triad

image-20230220104121279

Most measures in IT security have one of these three high-level goal.

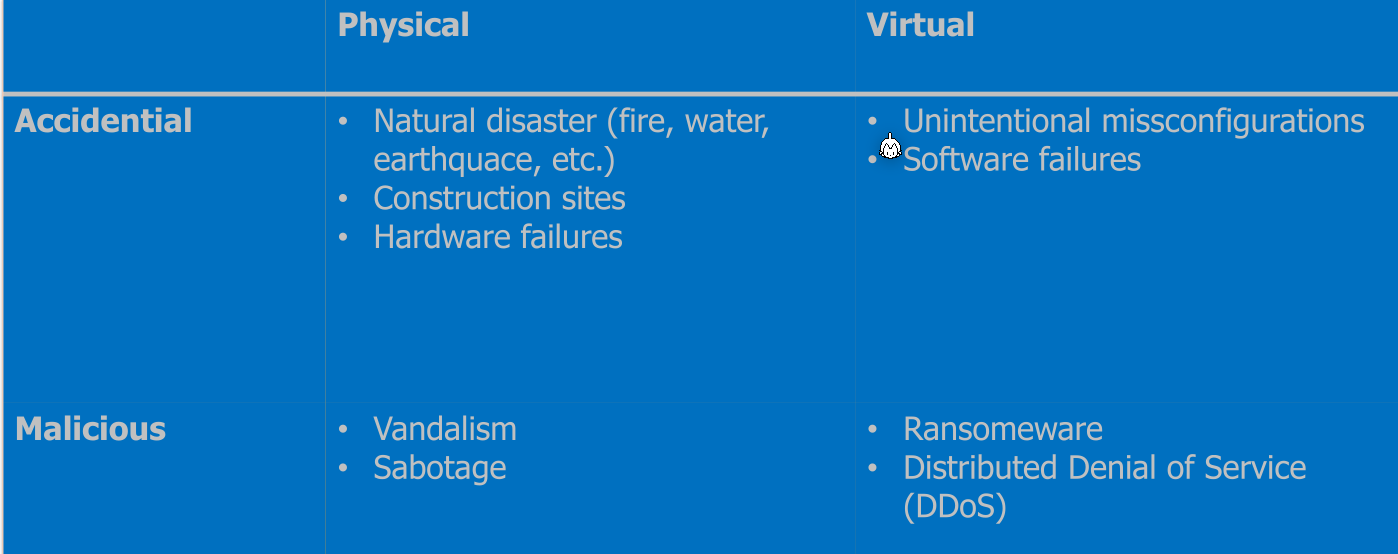

The availability category is further subdivided.

image-20230220104329767

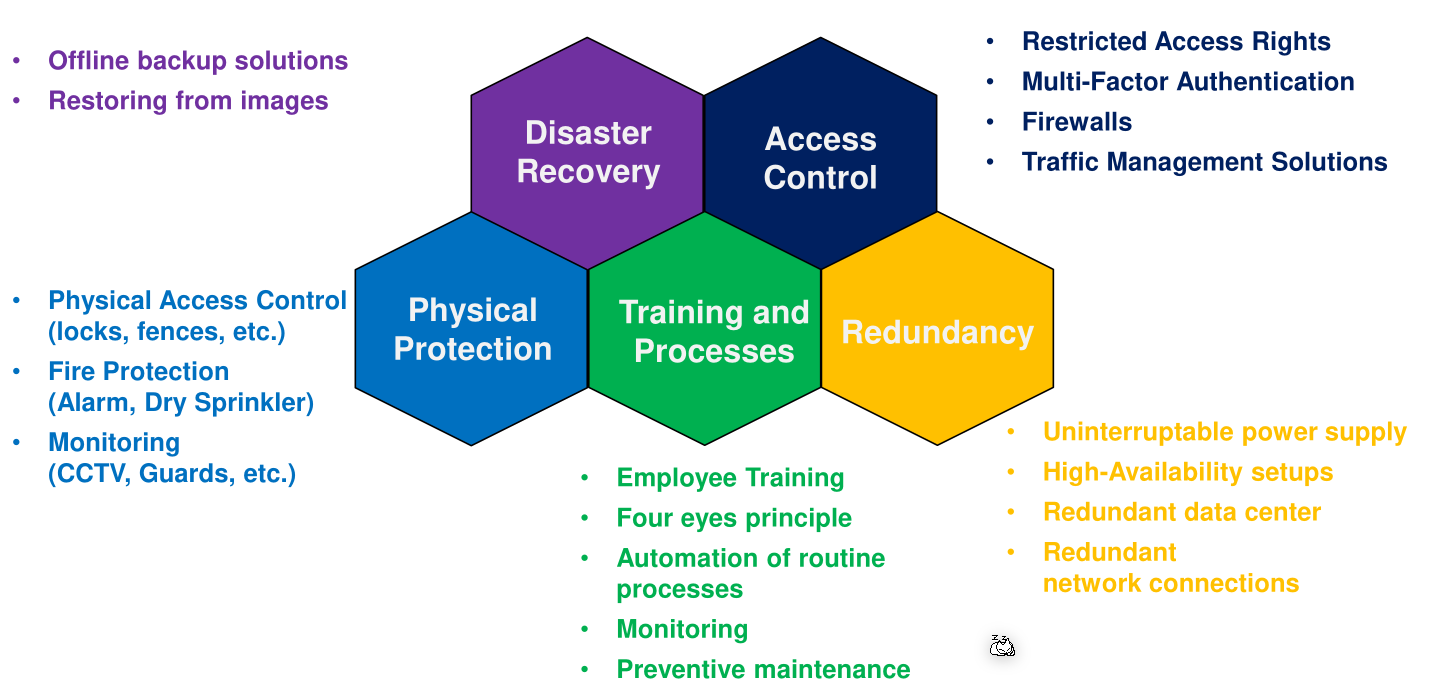

The following counter meassures can be used:

image-20230220104549432

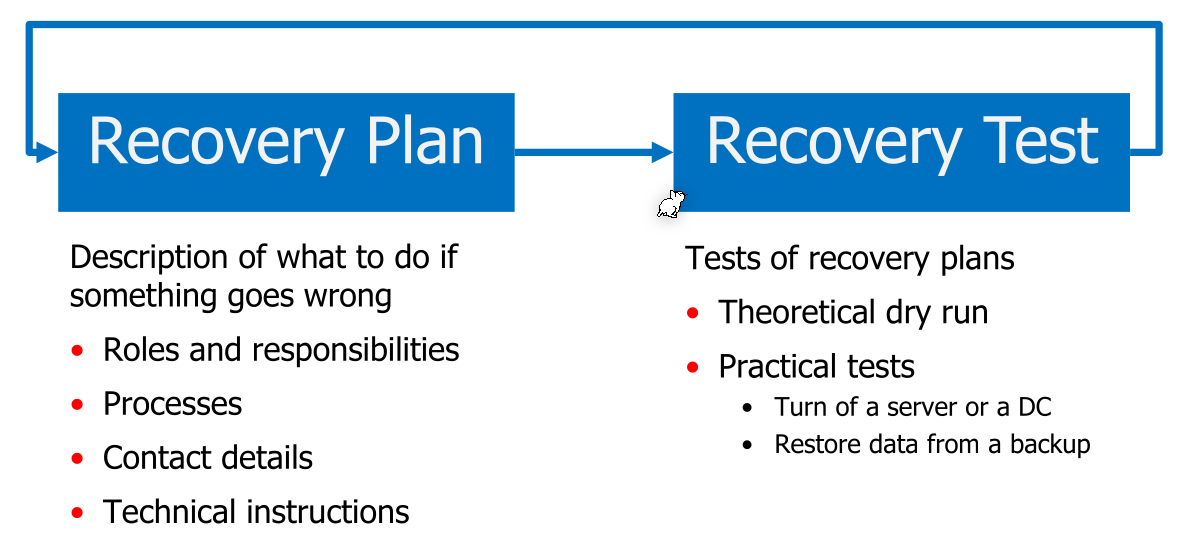

Business Continuity Management

image-20230220104409214

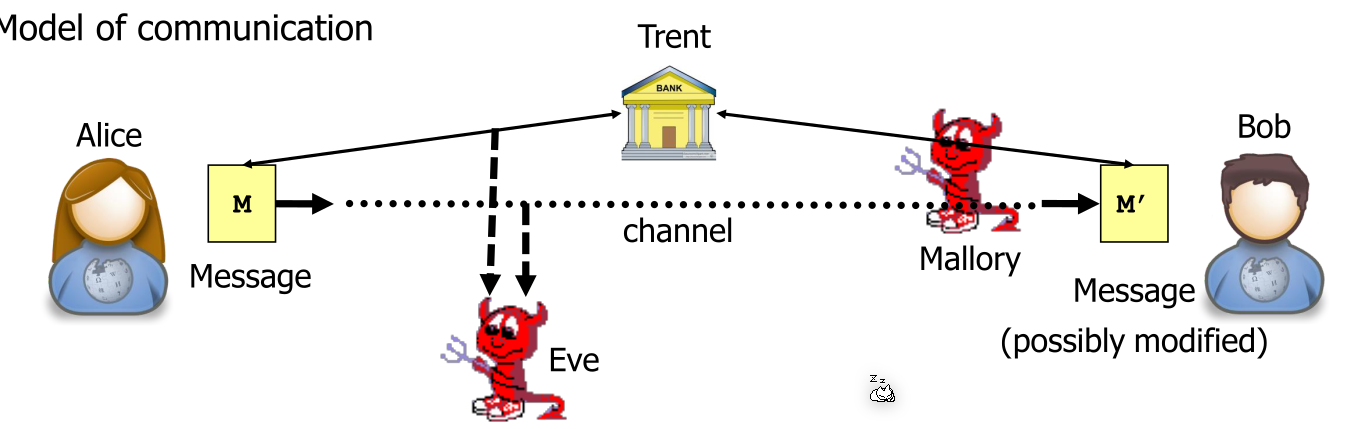

Model of Communication

image-20230220110022152

Name Goal Capabilities
Alice, Bob Communiacte securerly send, receive messages, perform computation
Eve Read messages (eavesdrop) intercept messages
Mallory Manipulates messages (man-in-the-middle) intercept, delete, modify, replay messages
Trent Help Alice and Bob (trusted thirt-party) send, receive messages, perform computation

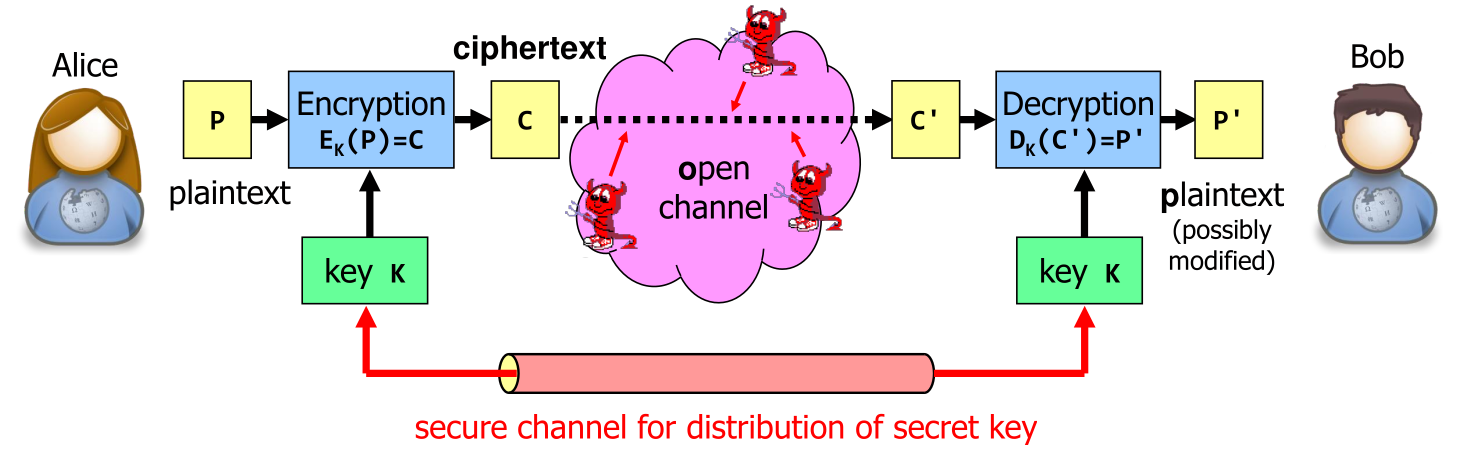

When using secret-key cryptography then the open channel is secured by a key \(k\) .

image-20230306102354630

Goals of Cryptography

  • Confidentiality: Only Alice and Bob can read the message they sent
  • Integrity: Ensure that data was not tampered with during transit
  • : Ensure that the sender is actually Alice
  • Freshness: Ensure that the received message from Alice is not a reply attack
  • Non-repudiation: Alice and Bob cannot deny they received a message (in this case they are the attackers)

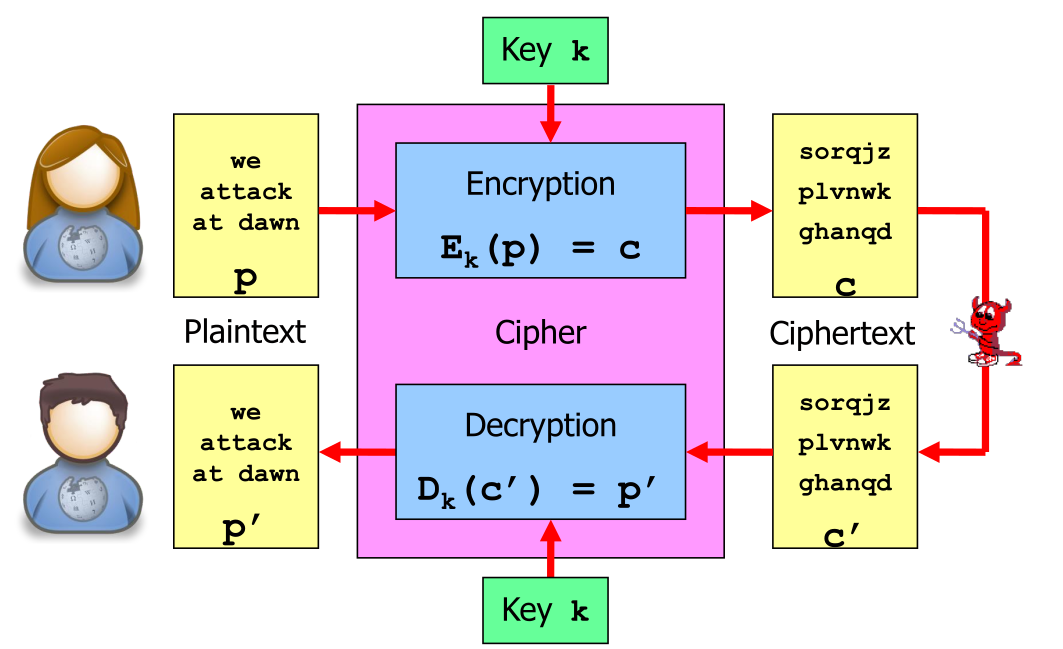

Math Terms

image-20230220110859299

Kerckhoff's Principal

Kerckhoff's principal says, that the security of a cipher must only relay on the key being a secret, NOT the cipher itself. Security-by-obscurity does not work!

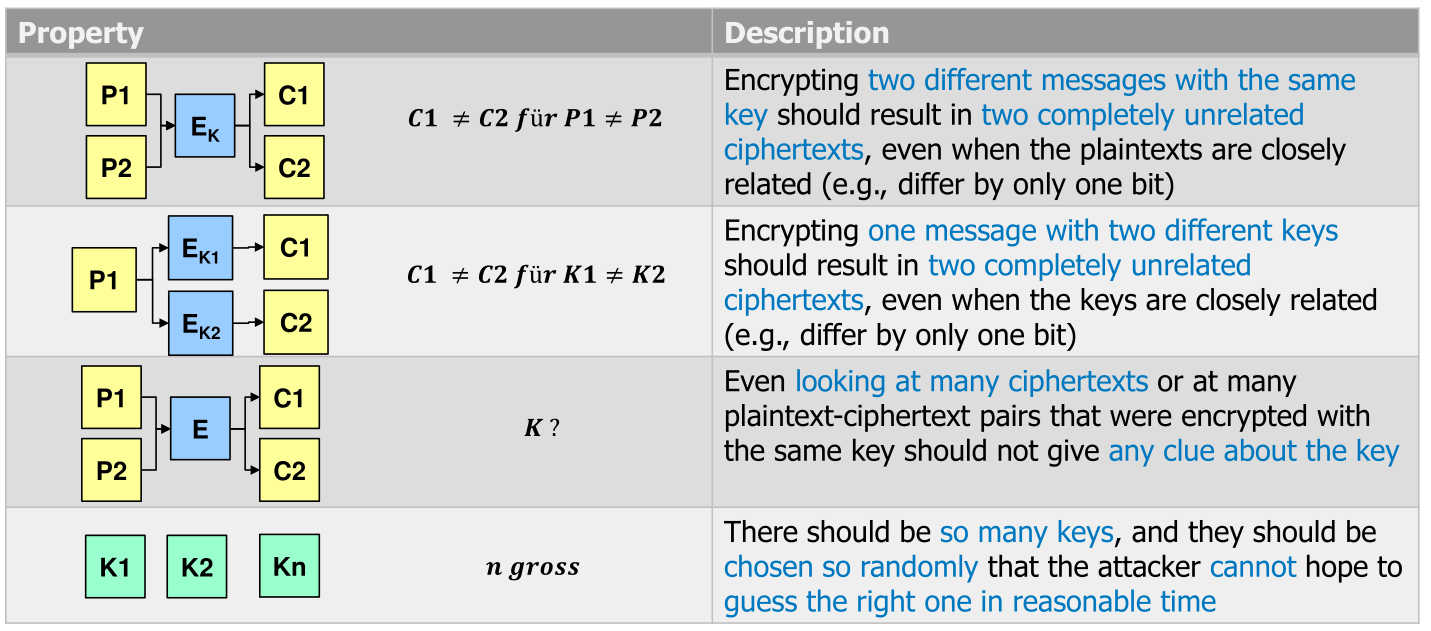

Properties of good encryption methods

image-20230220112015855

Cryptocraphic Work Factor

This factor describes how many keys one has to try on average before they guess the right one. This depends on the distribution of the keys and assumes that the right key can be detected. If every key is equally likely then the work factor is maximised. Additionally, when choosing a key it is vital to choose randomly so every key is equally likely.

The general formula is $$ WF(X)=\sum^n_{k=1}x_k\cdot P(x_k) $$ where \(x_k\) is a possible character in the password and \(P(x_k)\) is the probability that \(x_k\)

Perfect Secrecy/Information-Theoretically Secure

The probability that a plaintext produced a given ciphertext c under key k is independent of c and k.

This has the effect that if even if an attacker guessed the correct key, they can't verify that, since all messages "look the same".

An example is the following: A system which the two keys 1 and 0. The attacker intercepts a message and when decrypting it with the key 0, the result is I have thrown a coin and it came up heads. If the attacker decrypts it with the key 1, the result is I have thrown a coin and it came up tails. Which one is now correct?

Shanon calls this "perfect secrecy".

However, no modern encryption algorithm has this property(, except one-time pad).

Computationally Secure

A cipher has to have the following properties:

  • Only the correct key results in an intelligable result
  • The work factor is \(\frac 1 2\) of the key space

However, there is no known algorithm to this day.

One-Time Pad

image-20230529094518506

In one-time pad (vernam cipher) the plain text and key are xored. They key has to consists out of bits where both 1 and 0 are equally likely and each bit is independent of each other.

It has the following properties:

  • The key length is equal to the plain text length
  • Has perfect secrecy (, since every result is equally likely)
  • Key must not be reused and would lead to catastrophic loss of security since \(p_1 \oplus k = c_1\) and \(p_2 \oplus k = c_2\). From this the following is valid \(c_1 \oplus c_2 = p_1 \oplus p_2\).

Man-in-the-Middle (MitM)

To do a man in the middle attack, one needs to setup arp poisening or arp spoofing.

Strict-Transport-Security Header

This header enforces that a webpage can, from now on, only be reached via https. However, this only applies after the first connection to the webpage.

Public-­Key-­Pins Header

The Public-Key-Pins header instructs the browser to only allow a connection to a server where the hash of the public key matches one of the listed hashes.

Public-Key-Pins:
"pin-sha256="8MfHQC9XAUF/XBmQ/mZ8S/XEc5aSYzOlj0EHTj870+s=";
pin-sha256="tpFbv65QoYvcWNVl7gAEd1FAWWn/pjL8Fo2+f1pTrC8=";
pin-sha256="WKbBsAclTiyDM7EEJ5yUmrWmp9DxWM/hG+D+wcCLA24=";
pin-sha256="nxpEakAMgSw92zksspA8LdZyrdW/MGGr70VfcIT7DBU=";
max-age=31536000; includeSubDomains"

However, this can be problematic if the certificate was stolen or lost. In this case the server administrator need to create a new certificate. The browser won't connect to the server since the new certificate isn't listed in the Public-Key-Pings header.
